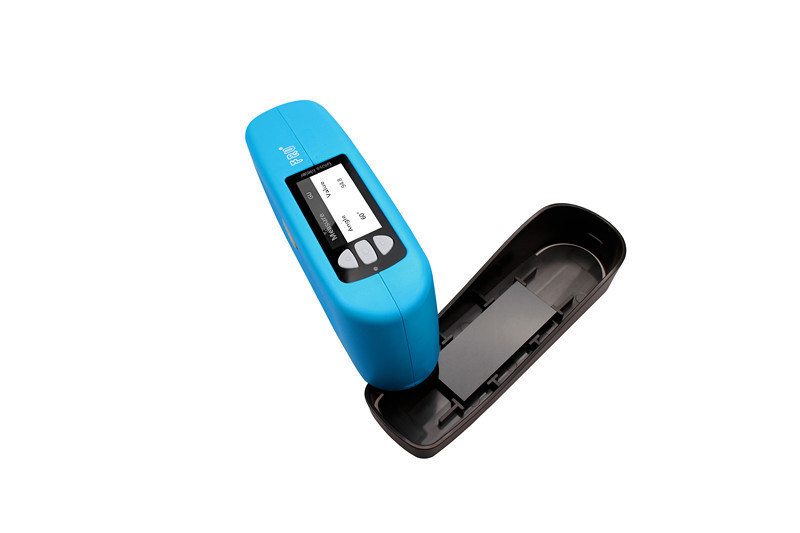

DH-WG60T Precision Gloss Meter
DH-WG60T gloss meter is produced according to the national verification regulation of
JJG696 standard, adopt long life light source, good repeatability, small volume, high precision and good stability. It is mainly used on coatings, printing ink, paint, paint, wood, marble,granite, polishing brick, brick of pottery and porcelain, plastic, paper, metal and non-metallic materials, more stable performance, more durable, more comfortable;
Gloss Meter DH-WG60T Function Description
- One button to complete measurement: one operation can complete measurement; Measuring light incident angle meet ISO 2813 three measuring light incident angle.
(2) Manually entering standard samples gloss data;
(3) Humanized design, good man-machine communication interface;
(4) Single angle can store 10000 testing records, storage structure is: 100 prototypes, each prototype with 100 testing data;
(6) Data browsing and viewing function;
(7) The machine has automatic shutdown function, low power warning functions, full data storage hint functions;
Attachment Description
(1) Power adapter: standard + 5V, 2A external power supply;
(2) Standard board: provide calibration criterion.
DH-WG60T specification
| Specification |
Unit |
Single Gloss Meter |
| Measuring Angle |
degree |
60° |
| Measuring Range |
GU |
60°: 0-200
|
| Measuring Spot |
mm |
60°: 9x15
|
| Division Value |
GU |
0-1000: 0.1 |
| Repeatability |
GU |
0-100:0.2 >100:0.2% |
| Indication Error |
GU |
±1.5 |
| Zero Error |
GU |
0.2 |
| Working Temperature |
℃ |
10℃ - 40℃ |
| Storage Temperature |
℃ |
-10℃ - 70℃ |
| Humidity Range |
|
Relative humidity less than 85%, without condensation |
| Power Adapter |
|
Section 2 5 alkaline batteries/power adapter |
| Volume |
mm |
159x49x72 |
| Weight |
g |
500 |
