HTGJ-10M-3 Rubber Plastic Pipe Hydrostatic Pressure Burst Testing Machine Great Stability Bursting Sealing Applications

Rubber Plastic Pipe Hydrostatic Pressure Burst Testing Machine Great Stability Bursting Sealing Applications

Introduction:

The machine is designed and manufactured according to GB/T6111 Thermoplastics pipes for the conveyance of fluids ----Resistance to internal pressure----Test method and GB/T15560Standard test method for short-time hydraulic failure and resistance to constant internal pressure of the plastics pipes for the transport of fluids . It is suitable to determine the pressure-resisting broken time or the maximum pressure value of instantaneous blast of thermoplastic pipes and compound pipes (such as PP-R ,PP-B ,PP-A ,PE ,PE-X ,PVC ,PVC-U and PVC-C ) under long-term constant internal pressure and temperature .It is indispensable for manufacturers of plastic pipes and testing institutions .

Feature:

1)This instrument is used for testing a certain range of internal pressure in a long period of time of plastic pipes.

2)The instrument consists of a pressure host, a pressure station, a water tank, a temperature control system and a computer software system.

Application:

The instrument is widely used in the internal pressure test of all kinds of plastic pipes. It is the ideal testing instrument for construction industry, Plastic pipe producers, national testing sectors and the scientific research sectors.

Working Conditions:

Following conditions must be satisfied to conduct a test:

• Ambient Temperature: 10℃～40℃;
• Ambient Temperature: 30%—80%;
• Vibration-free,no corrosive medium environment;
• Install and adjust the instrument to level on a solid foundation;
• No strong electromagnetic interference and no strong wind resistance;
• A indoor exhaust system is needed to prevent the instrument

Main Specifications:

​

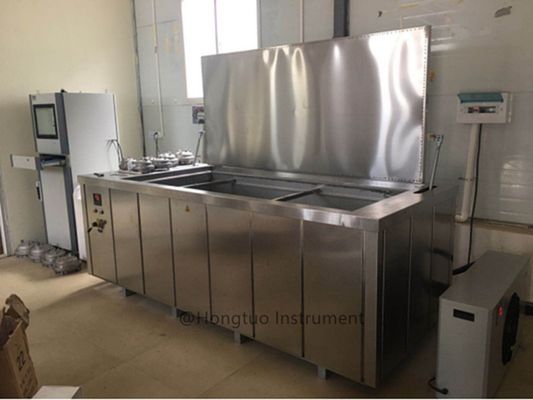

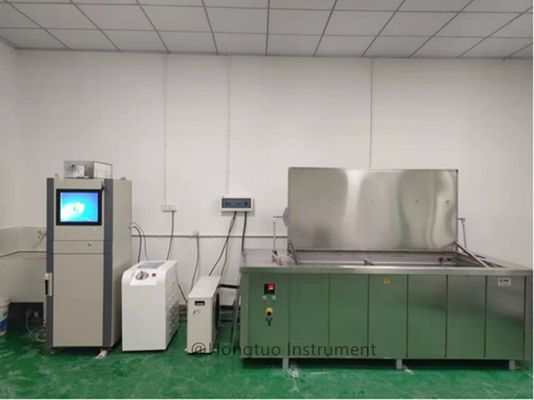

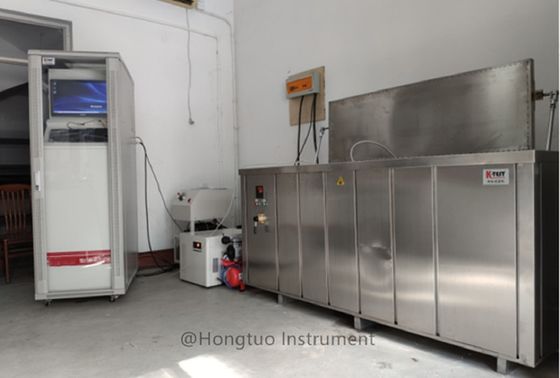

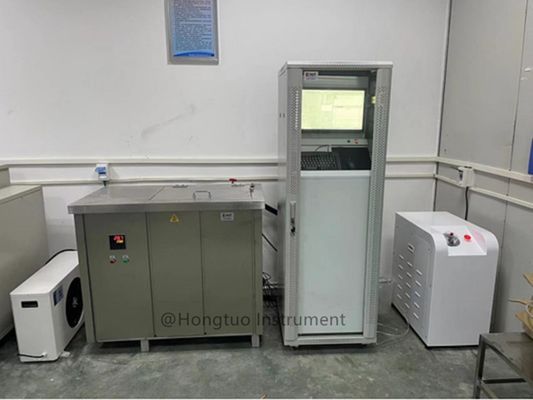

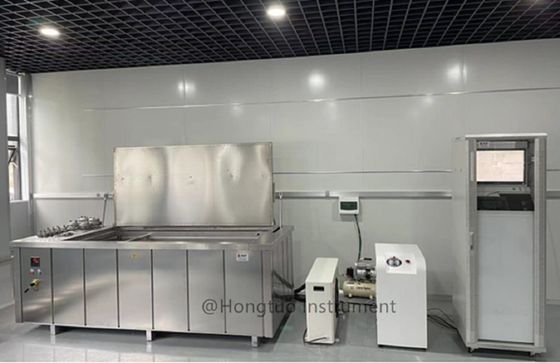

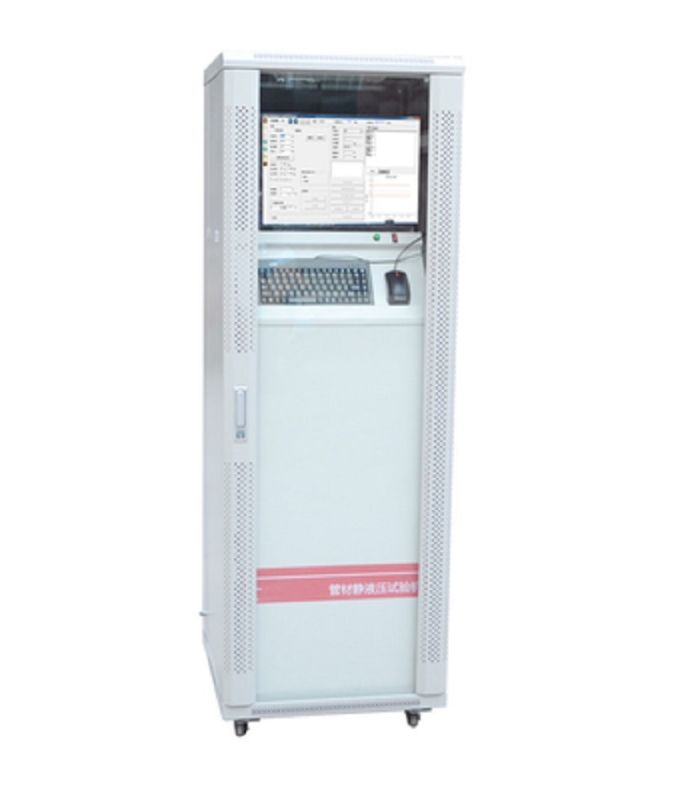

Detail image
