    Product Details:

    Place of Origin: DongGuan
    Brand Name: DahoMeter
    Certification: CE, FCC
    Model Number: DH-50D-CM

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Standard exporting wooden package
    Delivery Time: 3-8 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Impact Speed: 2.9 M/s ,3.5m/s Pendulum Energy: 22J、50J
    Pendulum Up Angle: 150° Impact Center Distance: 221mm/335m/380mm

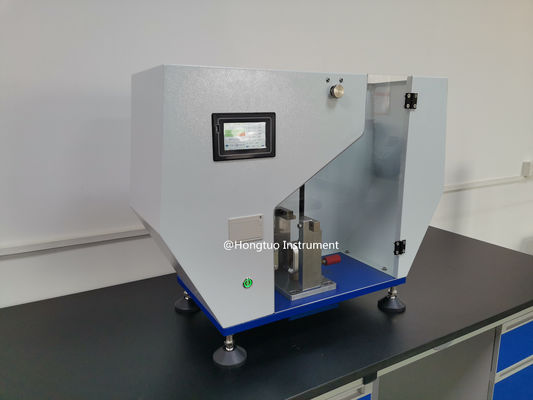

    Computer Display Izod Charpy Impact Test Equipment, Charpy and Izod Impact Testing Machine DH-50D-CM





    Application:



    The cantilever beam impact tester is used to measure the impact toughness of non-metallic materials such as plastic, reinforced nylon, fiberglass, ceramics, cast stone, plastic electrical appliances, and insulating materials. It is a common equipment for quality inspection by scientific research institution, universities and non-metallic materials manufacturers. It has the feature of simple structure, easy operation and high test accuracy.



    Features:



    • The electronic impact testing machine adopts the circular grating angle measuring technology.
    • It has the characteristics of high precision, good stability and large measuring range. 3.Digital Displaying the value of impact strength, pre-elevation angle, rising angle, and average value.
    • It has the function of automatic correction of energy loss, printing test report, etc.
    • The new material carbon brazing is used to make the swing arm, which is stronger than steel and lighter than aluminum.



    Standards:



    Comply with ISO179-92, GB1043-93, JB/T 8762-1998, JB/T8761-1998 standards





    Specification:



    Model HT-5D-CM HT-25D-CM HT-50D-CM
    Pendulum energy 1J,2J,2.75J,4J, 5.5J 11J,22J,25J 22J,50J
    Impact speed 2.9 m/s ,3.5m/s
    Pendulum 150°
    The distance of pendulum center to impact blade 221mm/335m/380mm
    The distance of impact blade to clamp upper flat 22mm,40mm,60mm,70mm,95mm
    Blade radius R=0.8mm, R=2mm



    The sample type meets the requirements of GB1843-80, ISO180-82 and JB/T8761_1998.
