|Place of Origin:||China|
|Minimum Order Quantity:||one set|
|Price:||USD999 to USD5999 per unit|
|Packaging Details:||standard exporting wooden package|
|Delivery Time:||5 to 8 working days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||300 sets per month|
|Analysis Range:||1ppm To 99.99%||Accuracy:||RSD ≤ 0.1%|
|Sample Form:||Solid, Powder, Liquid||Tube Voltage:||5KV ~ 50KV|
|High Voltage Power Supply:||0 ~ 50KV Spellman (USA)||Camera:||HD Camera|
|Filters:||Choose A Variety Of Customized Sections||Detector Type:||Proportional Counter Tube|
Two Years Warranty!!!

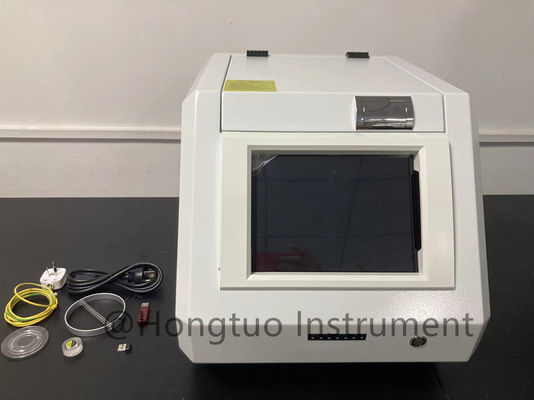

XRay Gold Purity Checking Detector , Xrf Gold Analyzer
Laptop( CE , FCC , Rohs )
Analysis range 1ppm to 99.99%
Accuracy RSD ≤ 0.1%
Sample form Solid, powder, liquid
Tube voltage 5KV ~ 50KV
High Voltage Power Supply 0 ~ 50KV Spellman (USA)
Camera HD camera
Filters Choose a variety of customized sections
Detector type The detector is proportional counter tube
Multichannel analyzer Multi channel simulation
Sample chamber size 380 *380 * 60 (mm)
Testing time 10sec ~ 100sec
Measuring element Au Ag Pt Pd Ni Cu Zn Cd In Rh
Analysis software Qualitative and quantitative analysis software
External dimensions 480 * 480 * 390 (mm)
Instruments Environmental requirements
Ambient temperature -5°C ~ 40°C
Relative humidity 15% ~ 90%
Power Requirements AC 220V ± 5V, 50/60HZ
(1) Just need to put testing tool into samples materials to be measured.no damage testing.The chemical composition and purity can be measured easily.
(2)Good quality of the three core components.can accurately identify 99.9% gold and 99.99% gold.
(3)As for any unknow metal materials,operators do not need to choose testing mode.the software can intelligently match with the best measurement method.and make quantitative analysis for the unknow metal materials quickly and accurately.
(4)Warranty for two years.
(5)Helpful for identifying gilding parts.
(5)The structure is small and sturdy.it is suitable for placing in exhibition room.
(6)Equiped with multi optics collimator,make the breakthrough to solve measuring problem for extreme tiny gold materials like gold wire,gold thread.
(7)Operators can see the measuring location for samples through camera and illuminating system.
(8)Measuring result can be download and upload to web to check and share.
(9)The temperature drift for all parts is controlled with millionth.
(10)Measuring result is four decimal places.
Advantages and Characteristics
(1)Integrated an inbuilt computer with high industrial motherboard and multi- point hand touch, you don’t need to prepare other computers, it can bring you super smooth experience feelings
(2)Three core components inside the instrument are all imported, so it determines that the instrument can accurately distinguish different gold samples especially 99.9% gold and 99.99% gold
(3)The instruments possess own unique mode of “one-key test”, it is China first and same as Europe's top spectrometers. No matter any unknown metal material, the operators don’t need to choose test templates and software intelligently matches the best way to measure and calculate. They are capable of fast, precise and non-destructive metal testing, making them suitable for use by jewelry retailers, jewelry manufacturers, precious metal refineries, pawn shops, government quality inspection departments, banks, laboratories and tertiary institutions
(4)Super long two years free warranty, confidence comes from pure European spectrometer production technology
(5)The instruments have an innovative function that can help customers identify gold-plated samples
(6)The users can see sample test position accurately by camera and cabin lighting system, and it can improve the testing confidence of users
(7)Equipped with a variety of optical collimator, breakthrough solved test problems of tiny metal samples (such as spun gold and gold thread samples)
(8)We can download and upload test data from network, and it is easy to view and share test results
(9)Temperature drift rate of all the parts inside instrument is controlled within one over one million, ensuring the strong stability and high precision of instrument. Testing results can show 4 digits after the decimal point, beyond all domestic spectral type precious metals analyzer
(10)Ultrahigh resolution, Super clear camera, Super convenient operation, Super fast detection speed,Perfect human interface
The Principle of Energy Dispersive
X Fluorescence Spectrometer
High-energy X-ray stimulates atomic electron shell,the extranuclear electron of atoms will jump and secondary X-ray energy releases. Because the energy that different element releases possesses different characteristic. Detection system can measure the energy and quantity to calculate the elements content.
The Main Components
High Voltage-X-Ray Tube-Detector&Pre-Amplifier-Main Amplifier-DPP-Control Module-Communication Module-Display System, etc
Currently using XRF analyzer for composition analysis of precious metals and purity judgment has become a method of reliable performance, widely application and high popularity. Moreover XRF analyzers have the support of the national standard. Compared with fire assay method and chemical reagents test method, using XRF analysis of precious metals is a much more quickly, more economic and multi-element detection method.
Fluorescence spectrum analyzers that HongTuo Instrument produces provide a detection technology of convenient operation ,competitive price, stable and accurate performance. We don't need to put test tools into the tested sample materials, and do not damage the samples being measured, then we can obtain the metal elements information of jewelry. The whole testing process only takes couple of minutes. All the liquid, solid and powder samples are available.
Contact Person: Mr. zhong
