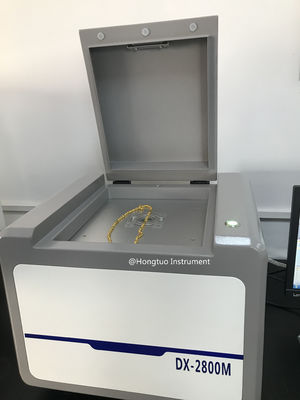

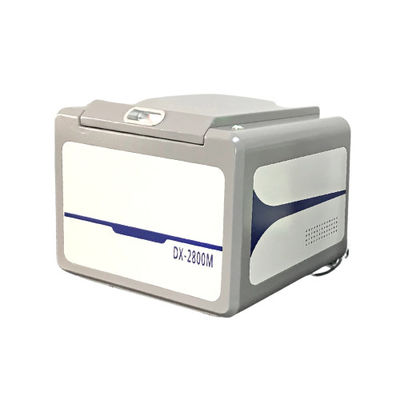

X- ray Fluorescence Spectrometer, X-ray Fluorescence Analyzer for Gold Metal

X- ray Fluorescence Spectrometer, X-ray Fluorescence Analyzer for Gold Metal

    • X- ray Fluorescence Spectrometer, X-ray Fluorescence Analyzer for Gold Metal
    • X- ray Fluorescence Spectrometer, X-ray Fluorescence Analyzer for Gold Metal
    • X- ray Fluorescence Spectrometer, X-ray Fluorescence Analyzer for Gold Metal
    • X- ray Fluorescence Spectrometer, X-ray Fluorescence Analyzer for Gold Metal
    • X- ray Fluorescence Spectrometer, X-ray Fluorescence Analyzer for Gold Metal
    • X- ray Fluorescence Spectrometer, X-ray Fluorescence Analyzer for Gold Metal
    • X- ray Fluorescence Spectrometer, X-ray Fluorescence Analyzer for Gold Metal
  • X- ray Fluorescence Spectrometer, X-ray Fluorescence Analyzer for Gold Metal

    Product Details:

    Place of Origin: China
    Brand Name: DahoMeter
    Certification: CE,Rohs,FCC
    Model Number: DX-2800M

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: USD 5999 to 20999
    Packaging Details: standard exporting wooden package
    Delivery Time: 7 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Measurable Elements: 72 Elements From Sodium (Na) Touranium (U) Between All The Elements Element Content: 1ppm-99.99%
    Detector Type: SDD(USA) Measurement Time: 5sec ~ 30sec
    Multichannel Analyzer: DahoMeter-DMCP

    X- ray Fluorescence Spectrometer, X-ray Fluorescence Analyzer for Gold Metal







    Introduction:





    At present, the use of XRF analyzer for chemical composition analysis and purity determination of precious metals has become a widely used, extremely popular, and supported by national standards, and reliable methods. The use of XRF for the analysis of precious metals is a faster and more economical method of multi-element detection than spark test and chemical reagent testing.



    The XRF Analyzer provides users with an easy-to-use, cost-effective inspection technology: no need to inspect the tool into the material of the sample being tested, or damage the sample. The chemical composition information of the alloy can be obtained.thus determines the carat rating of the sample. Whether you are buying precious metals such as gold, selling or producing jewelry, making metals, or recycling used metals, you need a quick way to determine the carat grade and other precious and non-precious metal content with extreme precision. In the first time, to effectively control product quality, set a reasonable price. The xrf analyzer quickly provides accurate analysis of all types of samples.

    Application:



    Specifications:



    Brand

    DahoMeter

    Model

    DX-2800

    DX-2800M

    Computer Built In

    NO

    NO

    Detector Type

    Si-pin (USA)

    SDD(USA)

    Multichannel Analyzer

    DahoMeter-DMCP

    Sample Chamber Size

    380 * 380 * 60 (mm)

    Test Time

    5sec ~ 30sec

    Measuring Element

    72 elements from sodium (Na) touranium (U) between all the elements

    Analysis Range

    1ppm to 99.99%

    Accuracy

    0.03% (Au≥96%)

    0.01% (Au≥96%)

    Sample Form

    Solid, powder, liquid

    Tube Voltage

    5KV ~ 50KV

    High Voltage Power Supply

    0 ~ 50KV

    Camera

    HD camera

    Filters

    Selectable customized switches

    Analysis Software

    Qualitative and quantitative analysis software

    External Dimensions

    480 * 480 * 390 (mm)

    480 * 480 * 390 (mm)

    Weight

    38Kg

    38Kg

    Instruments Environmental Requirements

    Ambient Temperature

    -5 ° C ~ 40 ° C (Suggested that in air conditioning room)

    Relative Humidity

    15% ~ 90%

    Power Requirements

    AC 220V ± 5V, 50/ 60 HzNo high power electromagnetic and vibration interference sources nearby





    Product Features



    1. Integrated an inbuilt computer with high industrial motherboard and multi- point hand touch, you dont need to prepare other computers, it can bring you super smooth experience feelings

    2. Three core components inside the instrument are all imported, so it determines that the instrument can accurately distinguish different gold samples especially 99.9% gold and 99.99% gold

    3. The instruments possess own unique mode of “one-key test”, it is China first and same as Europe's top spectrometers. No matter any unknown metal material, the operators dont need to choose test templates and software intelligently matches the best way to measure and calculate. They are capable of fast, precise and non-destructive metal testing, making them suitable for use by jewelry retailers, jewelry manufacturers, precious metal refineries, pawn shops, government quality inspection departments, banks, laboratories and tertiary institutions

    4. Super long warranty, confidence comes from pure European spectrometer production technology

    5. The instruments have an innovative function that can help customers identify gold-plated  samples

    6. The users can see sample test position accurately by camera and cabin lighting system, and it can improve the testing confidence of users

    7. Equipped with a variety of optical collimator, breakthrough solved test problems of tiny metal samples (such as spun gold and gold thread samples)

    8. We can download and upload test data from network, and it is easy to view and share test results

    9. Temperature drift rate of all the parts inside instrument is controlled within one over one millionensuring the strong stability and high precision of instrumentTesting results can show 4 digits after the decimal point, beyond all domestic spectral type precious metals analyzer

    10. Ultrahigh resolutionSuper clear cameraSuper convenient operationSuper fast detection speedPerfect human interface



    X- ray Fluorescence Spectrometer, X-ray Fluorescence Analyzer for Gold MetalX- ray Fluorescence Spectrometer, X-ray Fluorescence Analyzer for Gold MetalX- ray Fluorescence Spectrometer, X-ray Fluorescence Analyzer for Gold Metal
