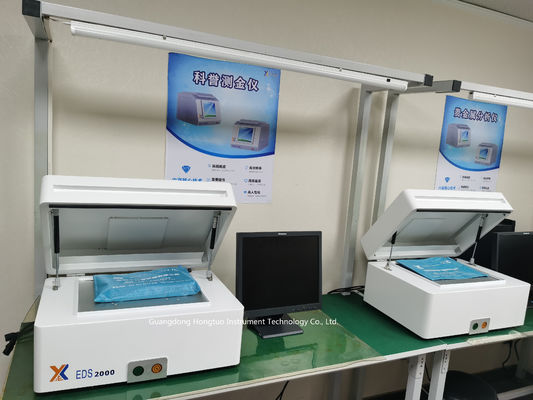

XRF Rohs Test Equipment, XRF Rohs Test Method, XRF Rohs Measurement
XRF ROHS Analyzer series advantages and characteristic:
* High resolution, high definition camera, convenient operation
* Nondestructive, rapid and accurate detection, human interface
* Heart of Europe,all core technologies from Europe and America
* Easy to use, one key operation, each element ROHS analysis results
* Test coating samples of innovative features
* The structure compact, appearance is very beautiful, suitable for placed on display room
* Press the button within seconds, can get the accurate results of the chemical composition of samples
* The use of PCS and software, can rapid conveniently make sample inspection result certificate
* Camera and cabin lighting system, real-time view sample testing, accomplish know fairly well
* Analyzer test data can be download and upload network detection results is easy to view and share
* And reliable power flow and short circuit protection, reliable to ensure the safety of the user
* Automatic test system of control, reliable guarantee of customers to use
XRF ROHS Analyzer Hardware performance and advantages
Nondestructive, rapid and accurate
High precision, high resolution, high reliability
Specification:
| Analysis |
1 PPM to 100% |
| Precision RSD |
0.01% ~ 0.05% |
| Test samples of physical |
state of solid, liquid and powder |
| Light tube voltage |
5 kv ~ 50 kv/optional import light tube |
| High voltage power supply |
0 ~ 50 kv Spellman (USA) |
| Light control current |
0 mu A ~ 1000 mu A |
| Camera, |
high-definition cameras |
| Detector |
Si Pin/SDD (optional) |
| Resolution |
Si - pin145 + 5 ev /SDD135 + 5 ev (USA) |
| Multichannel analyzer |
DMCP |
| Test time |
200SEC ~ 600SEC |
| ROHS analysis common elements |
Pb, Hg, Br, Cr, Cd, Ba, Sb, As..Etc. |
| Analysis software |
FP qualitative quantitative analysis software |
| Dimensions |
615*418*315(mm) |
| Weight: |
45kg |
| Power Requirement: |
Provided 220 VAC ,50 Hz to 60 Hz,,300watts power supply |
| Excitation Source |
50W, 50kV, 1000μA (max) |
| Detector: |
Si-PiN diode detectorSi Drift detector |
| Environmental Temp Range: |
-10°C to 50 °C |
