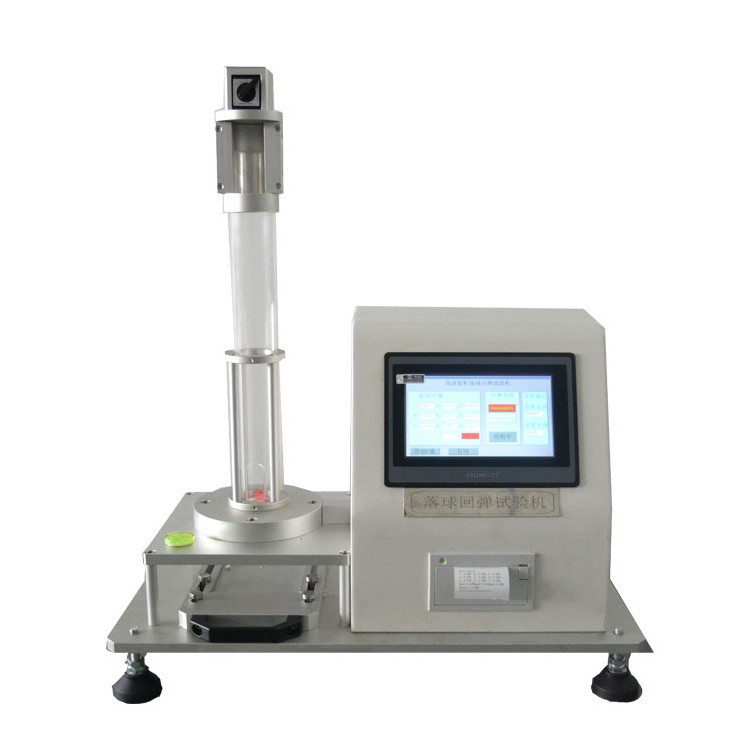

Name: DH-BR Foam Rebound Tester, Foam Rebound Testing Machine, Foam Drop Ball Rebound Resillence Testing Machine
Brand: Guangdong Hongtuo Instrument Technology Co,Ltd
SKU: DH-BR
Price: 2,499.00 USD
Availability: InStock

Home Products Other Testing Equipment

DH-BR Foam Rebound Tester, Foam Rebound Testing Machine, Foam Drop Ball Rebound Resillence Testing Machine

Product Details:

Place of Origin:	Dongguan, Guangdong
Brand Name:	DahoMeter
Certification:	CE, FCC
Model Number:	DH-BR

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Price:	USD999 to 3999 per unit
Packaging Details:	standard wooden package
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	300 sets per month

Contact Now

Detailed Product Description

Drop Height（adjustable）:	500±0.5%mm(ASTM)	Ball Diameter:	￠16±0.05 Mm
Accuracy:	<0.5%	Display:	LCD Touch Screen Interface
Test Result:	Average Rebound Height, Average Spring Rate	Power:	AC220V±10%, 50/60Hz, Single Phase

DH-BR Foam Rebound Tester, Foam Rebound Testing Machine, Foam Drop Ball Rebound Resillence Testing Machine

APPLICATIONS& TEST PURPOSE

It is designed according to ISO 8307 an d ASTM D 3574 test standards . It through specify diameter and mass ball fall on the foam specimen fro m certain height, calculate the percentage between m aximum drop height and rebound height, indicate fo am resilience by spring rate. It uses PLC control, LCD display and with USB port to output test results.

DESIGN STANDARD: ISO8307, AST M D 3574

STANDARD FEATURES

Drop height(adjustable)	500±0.5%mm(ASTM)

Ball diameter	￠16±0.05 mm

Accuracy	<1.5%

Display	LCD Touch Screen interface

Test result	Average rebound height, average spring rate

Test Sample Dimension	(L×W×H)100 mm×100 mm× 50m m

Power	AC220V±10%, 50/60Hz, single phase

DH-BR Foam Rebound Tester, Foam Rebound Testing Machine, Foam Drop Ball Rebound Resillence Testing Machine
