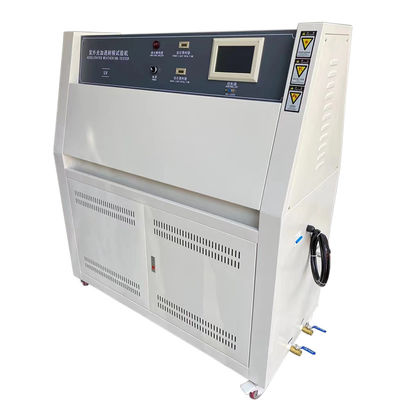

China Manufacturer UV Aging Testing Chamber , UV Material Aging Test Equipment
Usage:
UV testing chamber is suitable for testing the aging degree for the materials or the products in the climate condition of sunlight,temperature,humidity,condensation and rain.,etc.Can get the result of color
changing,color fading,dulling,chalking,cracking,muddy,fragility,alveolation,strength retrogression and oxidation .,etc.
Features:
(1).The installation thickness is adjustable;Easy installation.
(2).Upward spinning door is not in the way of users to operate machine;The machine is only took very small space.
(3).By using special cooling system,the ordinary tap water is allowed to be used.
(4).Very convenient software program;Will automatically alarm if operate wrongly or machine breakdown;light intensity can be programmed.
(5).The lifetime of tube can be extended if has radiation calibrator.(more than 1600 hours)
(6).Can be divided into ordinary type,light irradiation controlling type,spraying type.
Standards:
ASTM G 153, ASTM G 154, ASTM D 4329, ASTM D 4799, ASTM D 4587, SAE, J2020, ISO 4892 All current UV aging test standards.
Specification:
| Model |
DH-RUV-1 |
| Studio size: |
1140mm × 400mm × 380mm |
| Dimensions: |
1300mm × 500mm × 1460mm |
| Center distance of the lamp: |
70mm |
| The distance between the specimen and the nearest parallel surface of the lamp surface: |
About 50mm |
| Wavelength range: |
UV-A wavelength range is 315~400nm/UV-B wavelength range is 290~313nm |
| Radiation intensity: |
1.0W/m2 can be adjustable |
| Temperature resolution: |
0.1 ° C |
| Light temperature range: |
50 ° C ~ 70 ° C / temperature tolerance is ± 3 ° C |
| Condensation temperature range: |
40 ° C ~ 60 ° C / temperature tolerance is ± 3 ° C |
| Blackboard thermometer measurement range: |
30~80°C/tolerance is ±1°C |
| Temperature control method: |
PID self-tuning temperature control mode |
| Humidity range: |
About 45% to 70% R.H (lighting state) / 98% or more (condensation state) |
| Sink requirements: |
Water depth is not more than 25mm, and there is automatic water supply controller |
| Standard test piece size: |
75×150mm 48pcs |
| Recommended instrument environment: |
5~35°C, 40%~85%R·H, 300mm from the wall |
