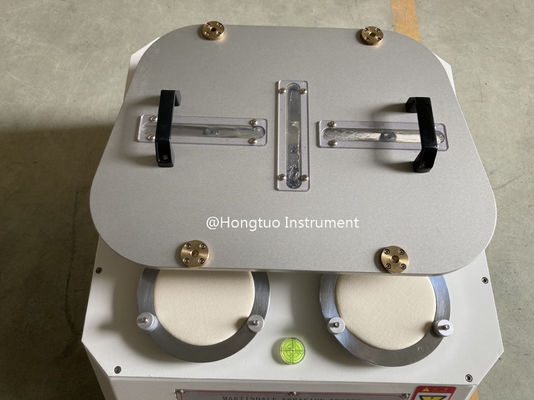

Martindale Abrasion Testing Machine for Texile Fabric ASTM D4970

Product Details:

Place of Origin:	China
Brand Name:	DahoMeter
Certification:	ISO,SGS
Model Number:	DH-MA-4

Payment & Shipping Terms:

Minimum Order Quantity:	one unit
Price:	negotiable
Packaging Details:	standard exporting wooden package
Delivery Time:	3 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	300 sets per month

Contact Now

Detailed Product Description

Usage:	Martindale Abrasion Testing Equipment	Testing Before Delivery:	Yes
After-sale Customer Service:	Yes	Number Of Working Position:	4
Abrader Speed:	50-2r/min	Pressing Weight:	2385±10g

Martindale Abrasion Testing Machine for Texile Fabric ASTM D4970

Applicable Range:

ASTM D4970 Martindale abrasion tester price is used for testing the performance of the wearing resistance,abrasion, appearance change (pilling degree/class) of the textiles and membrane materials.

Relevant Standards:

GB/T21196(national standard technical committees) GB/T4802.2 GB/T13775 FZ/T20020
ISO12945-2 ISO12947 ASTM D4966 ASTM D4970 ASTM D3886 JIS L1096 DIN53863 DIN53865 BS3424 BS5690 BS EN388 BS EN530 IWS Tm196/ TM112 M & S

Technical characteristics:

1,Number of working position: 4,6 or 8
2,Counter range: 0~99999
3,Max stroke: horizontal: 60.5±0.5mm vertical: 24±0.5mm
4,pressure weight:

a. specimen holder:200±1g

b. load piece for apparel & household textiles:395±2g
c. load piece for workwear & upholster:594±2g

d. stainless steel plate:260±1g
5,abrader diameter :
       type A 200g(1.96N) (9KPa),¢ 28.8 -0.084mm
       type B 155g(1.52N)(12KPa),¢ 90 -0.10mm
6,abrader speed:50-2r/min
7,pressing weight:2385±10g
8,instrument size:885×600×410mm
9,power supply:Ac220V 50Hz  500W

10,weight:150kg
