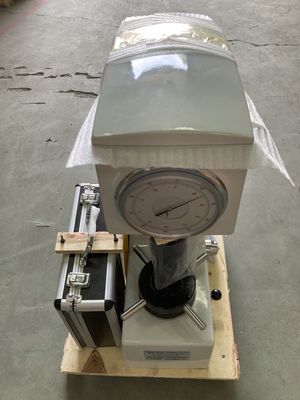

XHR-150 Rubber Friction Material Non-Metallic Material Plastic Rockwell Hardness Tester
Application:
Determination of the hardness of plastics, composite materials and friction materials and soft metal, non-metallic materials.
Main Feature:
Lever loading, manual operation, accurate and durable, high measurement efficiency; the dial directly reads HRE, HRL, HRM, HRR scale accuracy in line with JB/T7409.
Main Technical Specifications:
Measuring range: 70-100HRE, 50-115HRL, 50-115HRM, 50-115RR
Test force: 588.4, 980.7, 1417N (60, 100, 150kgf)
Maximum allowable height of the sample: 170mm;
Distance from the center of the indenter to the machine wall: 135mm;
Hardness resolution: 0.5HR;
Dimensions: 466x238x630mm;
Weight: about 65kg
Standard Configuration:
V-shaped table: 1
Large flat workbench: 1
Small flat workbench: 1
Steel ball indenter: Φ3.175mm Φ6.35mm Φ12.7mm
Standard plastic Rockwell hardness blocks: 4 blocks
