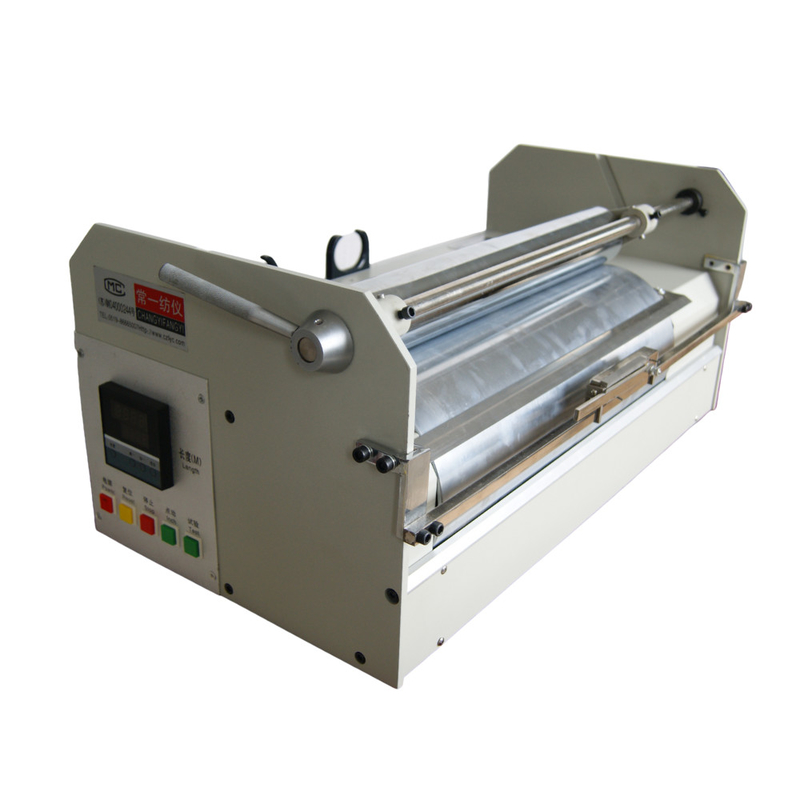

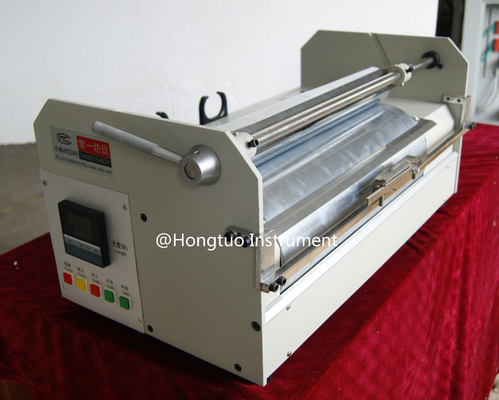

Name: Yarn Sliver and Roving Length Meter Sliver Length Measurement Machine YG114
Brand: DahoMeter
SKU: YG114
Price: 399 USD
Availability: InStock
Rating: 5 (143 reviews)

Home Products Fabric Testing Equipment

Yarn Sliver and Roving Length Meter Sliver Length Measurement Machine YG114

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	DahoMeter
Certification:	CE,FCC
Model Number:	YG114

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD399 - USD1699 per unit
Packaging Details:	standard exporting wooden package
Delivery Time:	5-7 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	300 sets per month

Contact Now

Detailed Product Description

Usage:	Yarn Sliver And Roving Length Meter	Testing Before Delivery:	Yes
After-sale Customer Service:	Yes

Yarn Sliver and Roving Length Meter Sliver Length Measurement Machine YG114

Application:

Used for making cotton,wool and spun silk yarn into sliver and roving with a certain length in order to measure its evenness.

Standards:

JJF(fabric)-001-2015

Specifications:


			Circumference of measuring wheel
			0.5m

			The width of the measuring wheel
			430mm

			linear velocity of the meter wheel
			A.50m/min B.5m/min

			The number of the head end of the test sample
			A.coarse yarn: one head end B.otton sliver: two head ends

			Preset Length
			1m-9999m

			Length Display
			0.1m-9999m

			Ways of drive
			one motor drive

			Outline size (Length×Width×Height)
			700×350×300mm

			N.W.
			about50Kg
