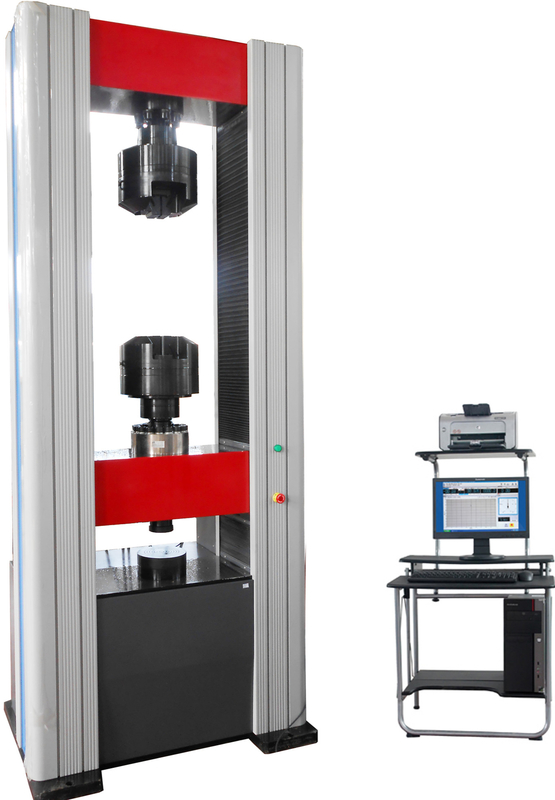

WDW-500E
Computerized Electronic Universal Testing Machine
1.Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing.
It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2.Standard:
ASTM, ISO, DIN, GB and other international standards.
3.Main Technical Parameters:
| Model |
WDW-500E |
| Max. Load |
500 KN |
| Structure |
Four-column Floor Model
(Upper Is Compression And Lower Is Tensile)
|
| Control Method |
Computer Automatic Control |
| Load Accuracy |
0.5 Class |
| Load Range |
0.2%~100% FS
(1KN~500KN)
|
| Motor |
Panasonic Motor,
Made In Japan
|
| Sensor |
Import Sensor,
Made In USA
|
| Resolution |
1/300000 |
| Measuring Range Of Deformation |
2%~100% |
|
Accuracy Indication Of
Deformation
|
≤±0.5% |
| Disp. Indicating Relative Error |
≤±1% |
| Displacement Resolution |
0.04um |
|
Adjusting Range Of Control
Rate Of Load
|
0.005~5%FS/S |
|
Control Precision Of Control
Rate Of Load
|
When rate < 0.05% FS/s, the precision is within ± 2% of setting value;
When rate ≥ 0.005%FS/s, the precision is within ± 1% of setting value.
|
|
Adjustment Scope Of
Deformation Rate
|
0.005~5%FN/S |
| Accuracy Of Deformation Rate |
Test Speed<0.05%FN/s, within the ±2% of the preset value,
Test Speed≥0.05%FN/s, within the ±0.5% of the preset value.
|
|
Adjusting Range Of
Displacement Rate
|
0.05~200mm/min (Can be customized) |
|
Control Precision Of
Displacement Rate
|
When rate < 0.5mm/min, within ± 1% of setting value;
When rate ≥ 0.5mm/min, within ± 0.5% of setting value.
|
| Scope Of The Consistent Load Deformation And Displacement Control |
0.5%~100%FS |
Accuracy Of The Consistent Load
Deformation And Displacement Control |
Preset value≥10%FN, within the ±0.1% of preset value;
Preset value<10%FN, within the ±1% of preset value.
|
| Tensile Space |
700mm (Can be customized) |
| Compression Space |
700mm (Can be customized) |
| Effective Spacing |
650mm (Can be customized) |
| Load Cell Configuration |
One PC (Max Load). More load cells
can be added according to customer requirement.
|
| Extend Configuration |
Large deformation extensometer, High or low
temperature test chamber, High temperature oven.
|
| Power Supply |
AC220V±10%,50Hz (Can be customized) |
| Grips |
Hydraulic Automatic Grips |
| Dimension |
1360*1000*2830mm |
| Weight |
3100 KG |
4. Main Unit Feature:
4.1 Adopt floor structure,High Stiffness, lower for tensile, upper for compression,upper for tensile,
lower for compression, double space. The beam is step less lifting.
4.2 Adopting ball screw drive, realize no clearance transmission,make sure the precision control of
the test force and deformation speed.
4.3 The shiel plate with limit mechanism used to control the beam moving range, in order to avoid
sensor damaged due to the moving distance is too large.
4.4 The table, moving beams is made of high quality precision machining steel plate , not only
reduce the vibration generated by specimen fracture, but also improve the stiffness.
4.5 Three columns of mandatory orientation, make the main unit rigidity much improved, to further
ensure the repeatability of measurement.
4.6 Adopt bolt type grip installation, make the grip replace easier.
4.7 Adopt AC servo driver and AC servo motor, with stable performance,more reliable. Have
over-current, over-voltage, over speed, overload protection device.
5. Software Function:
5.1 Defined function: According to different types of users, different material properties, different
test standards,different languages,flexible setting the test program to meet the test requirements.
5.2 Input Function: Entry specimen parameters before the test, you can single input sample
parameter, you can also batch input sample parameters, you can modify the sample parameters
before the test, the specimen parameters can be modified after the test, fully satisfy your
operating habits.
5.3 Data processing query functions: Fully equipped data query function, print function, the export
function to ensure the accuracy of the test data, reliability, real embody and reflect the nature
and characteristics of the material test data.
5.4 Curve analysis function: All the material properties can be reflected by the data curve, so the
powerful data curve analysis function can help you better mastery and understanding of the
material test properties, which is your best helper to analyze the material.
6.Software Feature:
6.1 Auto zero clearing: When test begin to start, the system auto zero clearing.
6.2 Auto calibration: System can automatically realize the value accuracy of the calibration.
6.3 Auto return: Finish test, the cross beam will auto return to the starting position.
6.4 Auto gear shifting (when choose classify gear test): According to the load size automatically
switch to the appropriate range, to ensure the accuracy of the test data.
6.5 Auto speed changing: The cross beam moving speed can auto chang during the test process
according to the preset program, also can manual change.
6.6 Auto saving: Adopting the the database management way, the test data and curve automatically
saved after the test.
6.7 Auto calculating: When finish test, automatic calculate elastic modulus, yield strength and the
percentage elongation stress, etc (Different test method, different analysis date.), can auto
analyze, also be artificial correction analysis results, improve the accuracy of the analysis.
6.8 Display way: Dynamic display of data and curves with the testing process.
6.9 Result comparison:Multiple test curve can use different color superposition,reproduced, enlarge,
presenting comparison of a set of sample.
6.10 Curve choice: Can choose Stress-strain, force-displacement, force-time, displacement-time,
and other curves to display and print; Can switch at any time to observe,zoom in and zoom out,
horizontal or vertical movement, real-time high speed sampling.
6.11 Test standard: Integrated with about 40 kinds of national standard or test method, can meet the
various test need of customers.
6.12 Test report: According to user required format to compile reports and can print bulk data.
6.13 Limit protection: With mechanical and Programmable two level limit protection function.
6.14 Overload protection: When the load exceeds the maximum file of 3-5%, automatic stop.
6.15 Other protection: With overload,over current,over voltage,displacement of the upper and lower
limit and emergency stop protection function.
Software Interface:
Load-extension, Force - time, force - displacement ect. more curve to choose.
Excel, word and template test report, and the report can be edited customized.
7.Configurations:
7.1 High strength main unit-----------------------------------------------------------------------------1 set
7.2 High precision arc synchronous deceleration system-------------------------------------------1 suit
7.3 High precision ball screw---------------------------------------------------------------------------2 pcs
7.4 WDW-500E: Panasonic Motor-------------------------------------------------------------------1 suit
7.5 WDW-500E: USA Import Sensor----------------------------------------------------------------1 pc
7.6 Tensile fixture-----------------------------------------------------------------------------------------1 suit
Round: Φ4-12mm, Φ12-26mm, Φ26-40mm, Flat: 0-15mm, 15-30mm, 30-40mm
7.7 Compression fixture ---------------------------------------------------------------------------------1 suit
7.8 Bending fixture(Optional)-------------------------------------------------------------------------1 suit
7.9 Small deformation extensometer(Optional)---------------------------------------------------1 suit
Gauge Of Extensometer: 50mm, Deformation: 10mm
