Place of Origin: | Dongguan, Guangdong |
Brand Name: | DahoMeter |
Certification: | CE, FCC |
Model Number: | WDW-500KN / 600KN |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | standard exporting wooden package |
Delivery Time: | In stock |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 300 sets per month |
Usage: | Universal Testing Machine | Type: | Double Columns |
---|---|---|---|
Power Supply: | AC220V±10%,50Hz/60Hz(can Be Customized) | Test Speed(mm/min): | 0.05-200 Stepless Arbitrary Setting |
Resolution Of Displacement: | 0.01mm | Accuracy Of Displacement: | Within±0.5%of Indicating Load |

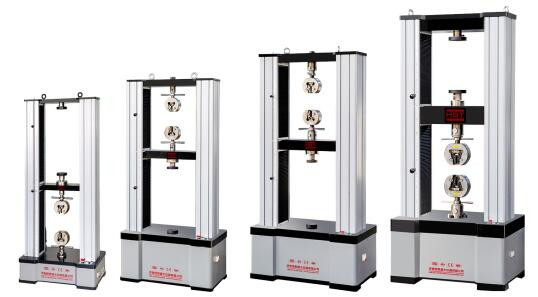

WDW-500KN / 600KN Computer Control Electronic Universal Testing Machine
1.Our advantages
1.1 Price advantage
We increase our own research and development efforts, built processing center, produce the core parts independently, so we could reduce link costs with the same quality. Our good quality products could save you much more than some other low price but bad quality products. Reducing the failure rate of the machine to reduce the customer's maintenance costs, but also improve the efficiency of the machine, this price with high quality could give customers real benefits.
1.2 Service advantages
A full range of services making customer satisfaction reflect our professional. Pre-sale, we provide comprehensive advisory services, tailored for different industries to meet customers’ special needs. After-sale, we could supply door to door installation and training services according to customer requirements . During the use process, if there is any problem, your could reach our technical engineers in time by e-mail, remote video, telephone and other possible ways. The machine parts is free of charge during the warranty period ,and machines lifetime maintenance.

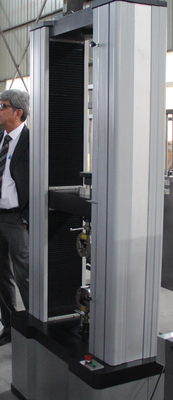

2. Pictures in each View
![]() |
![]() |
|
![]() |
![]() |
![]() |
![]() |
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
ASTMA370,ASTME4,ASTME8,ASTME9,ISO6892,ISO7438,ISO7500-1,EN10002-4,GB/T228-2002,etc.
Model | WDW-500 | WDW-500E | WDW-600 | WDW-600E | |
Max. Load(kN) | 500 | 500 | 600 | 600 | |
Structure |
Four-column floor or desk model, (upper is compression and lower is tensile) |
||||
Cover | All aluminum alloy | ||||
Control method | Computer control | ||||
Load accuracy | Class 1 | Class 0.5 | Class 1 | Class 0.5 | |
Load range | 2%~100%F·S | 0.2%~100%F·S | 2%~100%F·S | 0.2%~100%F·S | |
Load resolution | 1/300000 | ||||
Rang of deformation | 4%-100%FS | ||||
Resolution of deformation | 0.04um | ||||
Accuracy of displacement | Within±0.5%of indicating load | ||||
Resolution of displacement | 0.01mm | ||||
Test speed(mm/min) | 0.05-200 stepless arbitrary setting | ||||
Tensile space(mm) | 700(can be customized) | ||||
Compression space(mm) | 700(can be customized) | ||||
Test width(mm) | 760(can be customized) | ||||
Workbench thickness(mm) | 200 | ||||
Base height(mm) | 490 | ||||
Working environment | Room temperature 10℃~30℃,relative humidity≤80% | ||||
Power supply | AC220V±10%,50Hz/60Hz(can be customized) | ||||
Grips | Wedge type, plate type and other grips as consumer’s demand | ||||
Dimension(mm) | 1440*970*2740 |
Our company | Other company | ||
Machine type: Aluminium design, convenient carrying, can put on the table or underground, meet the different needs of customers |
Machine type: Iron plate, underground |
||
![]() |
Two ball screw and four rod guide structure,Coaxial degree is high,high rigidity,the machine can run smoothly |
|
Frame Structure: Only Two ball screw and two rod guide structure, Bad co - axial and poor rigidity |
![]() |
Material All aluminum alloy surface spray painting shell, beautiful, water-proof, and rust-proof. Long time use without color changing. |
![]() |
Material Iron plate spray paint, long time use with discoloration and rust.Corrosion resistance is poor. |
![]() |
Machine Base The base is made from an entire section of sheet metal. Smooth operation. |
![]() |
Machine Base Small steel plate joining together, poor smoothy and co - axial. |
![]() |
In the copper on the direction rod guide.Add the graphite lubricant. | ![]() |
None |
Testing Width:760mm (suitable to do the compression test for different width material ) | Testing Width:400mm (fail to do the compression test for large width material ) | ||
Total weight:3900Kg(Good stability, stable transmission, high rigidity, durable and low noise) | Total weight:1800kg( Easy deformation, run unstable and shaking easily, poor testing accuracy) | ||
Fixture: Hydraulic automatic clamp |
Fixture: Manual |
7. Configurations:
No | Name | Quantity | Company | Picture |
1 | Host | |||
1.1 | High strength main unit | 1set | HST | |
1.2 | High precision arc synchronous deceleration system |
|
China | ![]() |
1.3 | High precision ball screw | 2 pcs | ABBA | ![]() |
1.4 | AC Servo motor | 1set | TECO (Panasonic optional) | ![]() |
2 | Control System | |||
2.2 | High precision load sensor | 1 pc |
China (CELTRON optional) |
![]() |
2.3 | Control PC | 1set | Lenovo famous brand | ![]() |
2.4 | Control card and software | 1 suit |
HST English language |
![]() |
2.5 | Printer | 1set | HP | ![]() |
3 | Fixture | |||
3.1 |
Tensile fixture Round:5-12,12-22,22-32mm Flat:0-12,12-24,24-32mm |
1 suit | Other (optional) | ![]() |
3.2 | Compression fixture | 1 suit | HST | ![]() |
3.3 | Other fixture | optional | ![]() |
|
4 | Deformation measurement device | |||
4.1 |
Electronic extensometer Gauge length:50mm, Deformation:5 or 10mm |
1 suit | Include | ![]() |
4.2 |
Large deformation Gauge length:800mm |
1 suit | optional | ![]() |
8.Introduction of testing software
8.1 Defined function: according to different types of users, different material properties, different test standards, different languages, flexible setting the test program to meet the test requirements.
8.2 Test standard: Integrated with about 40 kinds of national standard or test method, can meet the various test need of customers.
8.3 Curve choice:can choose Stress - strain, force - displacement, force - time, displacement - time, and other curves to display and print; Can switch at any time to observe, zoom in and zoom out, horizontal or vertical movement, real-time high speed sampling.
8.4 Auto return:finish test, the cross beam will auto return to the starting position.
9. Clamps(can be customized)
