Digital Electronic Yarn Length Tester,Yarn Linear Density Tester

Product Details:

Place of Origin:	China
Brand Name:	DahoMeter
Certification:	CE,FCC
Model Number:	YG086C

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD999 to 1999 per unit
Packaging Details:	938267cm;81kg
Delivery Time:	5 to 8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	300 sets per month

Contact Now

Detailed Product Description

Usage:	Digital Electronic Yarn Length Tester,Yarn Linear Density Tester	Number Of Bobbins Measurable Simultaneously:	6 Bobbins
Bobbin Distance:	60 Mm	Total Weight Of Product:	55kg

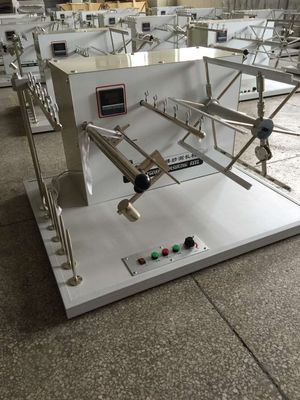

Digital Electronic Yarn Length Tester, Yarn Linear Density Tester

This product is used to is used for reeling set length’s yarn to test whose linear density and length.

This product is in conformity with the national standard GB4743 Textiles--Yarn from packages--Determination of linear density (mass per unit length) by the skein method.

Major specifications:

Number of bobbins measurable simultaneously	6 bobbins
Bobbin distance	60 mm
Reel circumference	1,000mm ±1mm
Reel speed	(30 ~ 250) r/min, infinite variable speed
Selectable number of turns in a skein	2 ~ 9999 turns
Reciprocal traverse movement range for reeling	35mm
Tension range by single yarn reeling	(0~100) cN
Power supply: voltage	220 V, frequency: 50Hz
Overall dimensions (L x W x H)	780mm x 660mm x 480mm
Total weight of product	55kg

Digital Electronic Yarn Length Tester,Yarn Linear Density Tester
