Name: Digital Wrap Reel Testing Machine, Yarn Length Measuring Machine, Digital Yarn Length Measuring Instrument
Brand: Guangdong Hongtuo Instrument Technology Co,Ltd
SKU: YG086C
Price: 1,499.00 USD
Availability: InStock

Home Products Fabric Testing Equipment

Digital Wrap Reel Testing Machine, Yarn Length Measuring Machine, Digital Yarn Length Measuring Instrument

Product Details:

Place of Origin:	China
Brand Name:	DahoMeter
Certification:	CE, FCC
Model Number:	YG086C

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD999 to 1999 per unit
Packaging Details:	938267cm;81kg
Delivery Time:	5 to 8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	300 sets per month

Contact Now

Detailed Product Description

Usage:	Digital Wrap Reel Testing Machine	Tension Range By Single Yarn Reeling:	(0~100) CN
Power Supply:	Voltage 220 V, Frequency: 50Hz

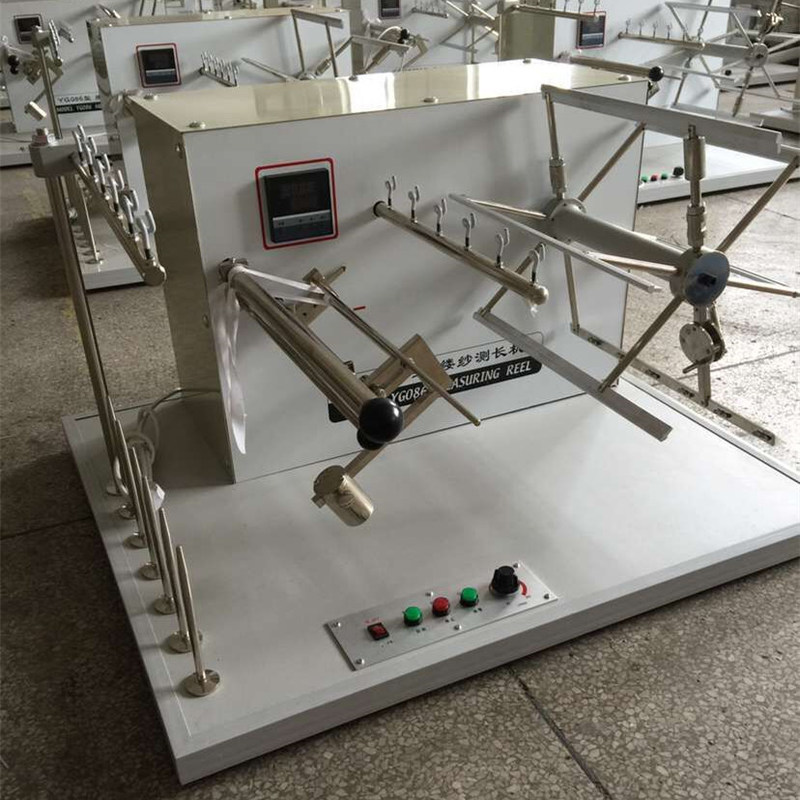

Digital Wrap Reel Testing Machine, Yarn Length Measuring Machine, Digital Yarn Length Measuring Instrument

This product is used for testing the accurate length of yarns, the linear density or the count of textile yarns and the strength of skeins.

Major specifications:

Number of bobbins measurable simultaneously	6 bobbins
Bobbin distance	60 mm
Reel circumference	1,000mm ±1mm
Reel speed	(30 ~ 250) r/min, infinite variable speed
Selectable number of turns in a skein	2 ~ 9999 turns
Reciprocal traverse movement range for reeling	35mm
Tension range by single yarn reeling	(0~100) cN
Power supply	voltage 220 V, frequency: 50Hz
Overall dimensions (L x W x H)	780mm x 660mm x 480mm
Total weight of product	55kg

Digital Wrap Reel Testing Machine, Yarn Length Measuring Machine, Digital Yarn Length Measuring Instrument
