Name: Popular Supplier Ultrasonic Flaw Detection Equipment , Handheld Ultrasonic Flaw Detector Price
Brand: DahoMeter
SKU: KUT-650
Price: 499 USD
Availability: InStock
Rating: 4.6 (163 reviews)
ISBN: 10785693

Home Products NDT Testing Equipment

Popular Supplier Ultrasonic Flaw Detection Equipment , Handheld Ultrasonic Flaw Detector Price

Product Details:

Place of Origin:	Dongguan China
Brand Name:	DahoMeter
Certification:	FCC,CE
Model Number:	KUT-650

Payment & Shipping Terms:

Minimum Order Quantity:	One set
Price:	USD499 to USD1599
Packaging Details:	standard exporting package
Delivery Time:	5-7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	300 sets per month

Contact Now

Detailed Product Description

Usage:	Handheld Ultrasonic Flaw Detector	Resolution:	0.1mm(2.5mm~100mm) 1mm(>100mm)
Display:	LED True Color	Temperature:	-20°C~70°C
Weight:	1kg	Size:	238x155x46mm
Testing Before Delivery:	Yes	Warranty:	1 Year

Popular Supplier Ultrasonic Flaw Detection Equipment, Handheld Ultrasonic Flaw Detector Price

Inrtoduction

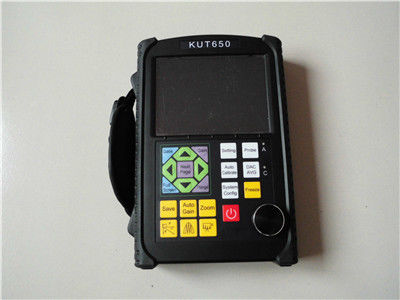

KUT-650 can be widely used in any fields that need defect inspection and quality controlling e.g. manufacturing industry, iron & steel metallurgical industry, metalworking, chemical industry, etc., also be broadly used in the active safety inspection and service-life evaluation in such fields as aerospace, railway transportation and boiler pressure vessels, etc. It is an essential instrument for non-destructive inspection industry.

Main Features

Automated display precise flaw location(Depth d, level p,distance s,amplitude,sz dB,ф);

*Unlimited of video time

*Automated to switch three staff gauge ((Depth d,level p,distance s);

*Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity ;

*Convenient to make and use DACTCG and AVG to evaluate the echo, the curve can be modified and compensated;

*6dB DAC functions;

*Standards of test for DAC is saved.

*500 independence setup, any criterion can be input freely, we can work in the scene without test block;

*Big memory of 1000 A graph

*Automated gain and gain scan;

*Peak Hold and Peak Memory;

*B scan;

*AWS D1.1

*Automated make video of test process and play; use USB flash disk,the length of video is unlimited.

*Powerful pc software and reports can be export to excel;

*Li battery, continue working time up to 10 hours;

*The embeded software can be online updated；

*Display freeze;

*Automated echo degree;

*Angles and K-value;

*Lock and unlock function of system parameters;

*Electronic clock calendar ;

*Two gates setting and alarm indication;

*Gate and DAC alarm;

Technical Specification

Popular Supplier Ultrasonic Flaw Detection Equipment , Handheld Ultrasonic Flaw Detector Price

Standard Delivery

ITEM	QTY
KUT650 Host	1 PC
Straight Probe 10mm 4MHz	1 PC
Angle Probe 8x9 60°4MHz	1 PC
Probe Connecting Cable	2 PCs
9V Power Adaptor & Cable	1 PC
PC Software	1 PC
Communication Cable	1 PC
Calibration Certificate	1 PC
User Manual	1 PC
Instrument Case	1 PC
Warranty	1 Year
