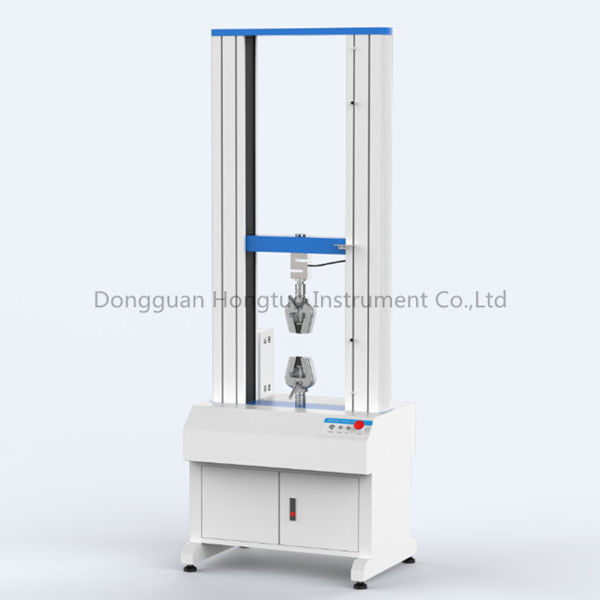

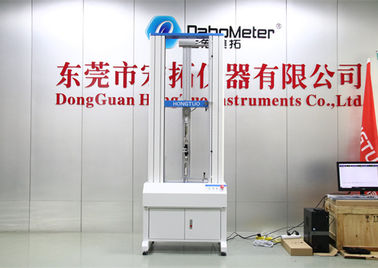

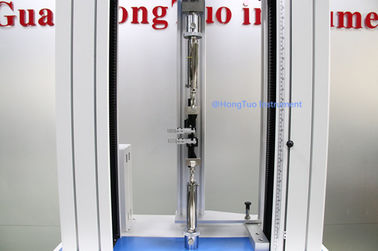

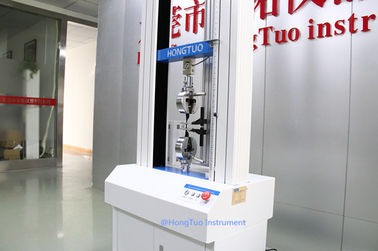

WDW-50D 50KN Desktop Tensile Testing Machine Computer Controlling Servo Universal Testing Machine

WDW-50D 50KN Desktop Tensile Testing Machine Computer Controlling Servo Universal Testing Machine

    • WDW-50D 50KN Desktop Tensile Testing Machine  Computer Controlling Servo Universal Testing Machine
    • WDW-50D 50KN Desktop Tensile Testing Machine  Computer Controlling Servo Universal Testing Machine
    • WDW-50D 50KN Desktop Tensile Testing Machine  Computer Controlling Servo Universal Testing Machine
    • WDW-50D 50KN Desktop Tensile Testing Machine  Computer Controlling Servo Universal Testing Machine
    • WDW-50D 50KN Desktop Tensile Testing Machine  Computer Controlling Servo Universal Testing Machine
  • WDW-50D 50KN Desktop Tensile Testing Machine  Computer Controlling Servo Universal Testing Machine

    Product Details:

    Place of Origin: DONGGUAN
    Brand Name: DAHOMETER
    Certification: CE,FCC
    Model Number: WDW-50D

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiable
    Packaging Details: wood standard exported package
    Delivery Time: In stock
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Power: Other Usage: Universal Testing Machine
    Customized: Yes OEM Service: Yes
    Stock: Yes After-sale Service Provided: Yes
    Usage: Compression Tester , Compression Deflection Test



     WDW-50D 50KN Desktop Tensile Testing Machine







    Capacity:

    50kn





    Application:

    It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.





    Standard:

    ASTM, ISO, DIN, GB and other international standards.





    Main Unit Feature:

    • Adopt single column structure, lower for tensile, upper for compression, double space. The beam is step less lifting, light but rigid.
    • Adopting ball screw drive, realize no clearance transmission,make sure the precision control of the test force and deformation speed.
    • The photoelectric encoder is the displacement sensor, with high resolution, strong anti-interference ability.
    • The shield plate with limit mechanism used to control the beam moving range, in order to avoid sensor damaged due to the moving distance is too large.
    • The table, moving beams is made of high quality precision machining steel plate , not only reduce the vibration generated by specimen fracture, but also improve the stiffness.
    • The motor tail is upwards, above the work surface, this design makes the main unit lower space narrowing, the whole machine is more coordinating, and more easy to spread out the heat generated by the motor rotation, extend electrical components life.
    • Three columns of mandatory orientation, make the main unit rigidity much improved, to further ensure the repeatability of measurement.
    • Adopt bolt type grip installation, make the grip replace easier.





    Software function:

    • Defined function: according to different types of users, different material properties, different test standards, different languages, flexible setting the test program to meet the test requirements.
    • Input Function: Entry specimen parameters before the test, you can single input sample parameter, you can also batch input sample parameters, you can modify the sample parameters before the test, the specimen parameters can be modified after the test, fully satisfy your operating habits.
    • Data processing query functions: fully equipped data query function, print function, the export function to ensure the accuracy of the test data, reliability, real embody and reflect the nature and characteristics of the material test data.
    • Curve analysis function: All the material properties can be reflected by the data curve, so the powerful data curve analysis function can help you better mastery and understanding of the material test properties, which is your best helper to analyze the material.





    Software Features

    • Auto zero clearing : After starting test, the system auto zero clearing.
    • Auto calibration:system can automatically realize the value accuracy of the calibration.
    • Auto return:finish test, the cross beam will auto return to the starting position.
    • Auto gear shifting (when choose classify gear test): According to the load size automatically switch to the appropriate range, to ensure the accuracy of the test data.
    • Auto speed changing:The cross beam moving speed can auto changing during the test process according to the preset program, also can manual change.
    • Auto saving: adopting the the database management way, the test data and curve automatically saved after the test.
    • Auto calculating:when finish test, automatic calculate elastic modulus, yield strength and the non-proportional elongation stress, etc ( Different test method, different analysis date.) , can auto analyze, also be artificial correction analysis results, improve the accuracy of the analysis.
    • Display way: Dynamic display of data and curves with the testing process.
    • Result comparison: Multiple test curve can use different color superposition, reappear, enlarge , presenting comparison of a set of sample.
    • Curve choice:can choose Stress - strain, force - displacement, force - time, force- deformation, displacement - time, and other curves to display and print; Can switch at any time to observe, zoom in and zoom out, horizontal or vertical movement, real-time high speed sampling.
    • Test standard: Integrated with about 40 kinds of national standard or test method, can meet the various test need of customers.
    • Test report: According to user required format, using EXCEL to compile reports and print bulk data.
    • Limit protection: with mechanical and programmable two level limit protection function.
    • Overload protection: with two grade overload protection.
    • Cross beam moving overload: when the load exceeds 0.2-0.5% of the maximum value of the scale, automatic stop.
    • Test overload: when the load exceeds 2-5% maximum value of the each file, automatic stop
    • Other protection:with overload, over current, over voltage, the displacement upper and lower limit and emergency stop protection function.



    Main Technical Parameters:

    Model WDW-50D
    Max. Load 50KN
    Structure

    Four-column Floor Model

    (Upper Is Tensile And Lower Is Compression)

    Control Method Single Chip Control
    Load Accuracy 1 Class
    Load Range 2%~100%F·S (1KN~50KN)
    Displacement Resolution 0.04um
    Test Speed 1~500mm/min
    Tensile Space 700mm (Can be customized)
    Compression Space 700mm (Can be customized)
    Test Width 500mm (Can be customized)
    Power Supply AC 220V±10%, 50Hz (Can be customized)
    Grips Wedge Type, Plate Type And Other Grips As Customers’ Demand
    Weight 460 KG
    Dimension 850*480*1865mm
    WDW-50D 50KN Desktop Tensile Testing Machine  Computer Controlling Servo Universal Testing MachineWDW-50D 50KN Desktop Tensile Testing Machine  Computer Controlling Servo Universal Testing MachineWDW-50D 50KN Desktop Tensile Testing Machine  Computer Controlling Servo Universal Testing Machine
