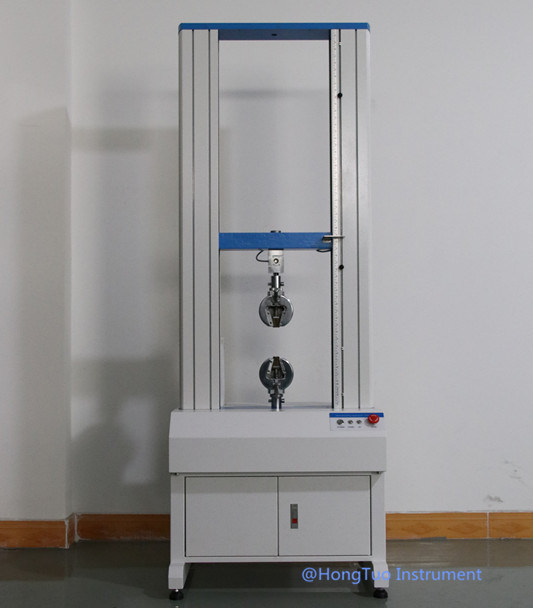

Double Column 30KN Capacity Pet Bottle Seatbelt Pull Tensile Testing Instrument

Double Column 30KN Capacity Pet Bottle Seatbelt Pull Tensile Testing Instrument

Capacity: 30KN

Application:

It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.

Standard:

ASTM, ISO, DIN, GB and other international standards.

Main Unit Feature:

• Adopt single column structure, lower for tensile, upper for compression, double space. The beam is step less lifting, light but rigid.
• Adopting ball screw drive, realize no clearance transmission,make sure the precision control of the test force and deformation speed.
• The photoelectric encoder is the displacement sensor, with high resolution, strong anti-interference ability.
• The shield plate with limit mechanism used to control the beam moving range, in order to avoid sensor damaged due to the moving distance is too large.
• The table, moving beams is made of high quality precision machining steel plate , not only reduce the vibration generated by specimen fracture, but also improve the stiffness.
• The motor tail is upwards, above the work surface, this design makes the main unit lower space narrowing, the whole machine is more coordinating, and more easy to spread out the heat generated by the motor rotation, extend electrical components life.
• Three columns of mandatory orientation, make the main unit rigidity much improved, to further ensure the repeatability of measurement.
• Adopt bolt type grip installation, make the grip replace easier.

Main Technical Parameters:

• Max. load:10kN,20kN,30kN,50kN
• Structure:Four-column floor model,(upper is tensile and lower is compression;upper is compression and lower is tensile)
• Control method:Single chip control
• Load accuracy:1 class
• Load range:2%~100%F·S
• Displacement Resolution:0.04um
• Test speed:1-500mm/min
• Tensile space:700mm(can be customized)
• Compression space:700mm(can be customized)
• Test width:400mm(can be customized)
• Power supply:AC220V±10%,50Hz(can be customized)
• Grips:Wedge type, plate type and other grips as consumer’s demand
• Dimension:700*450*1775mm
