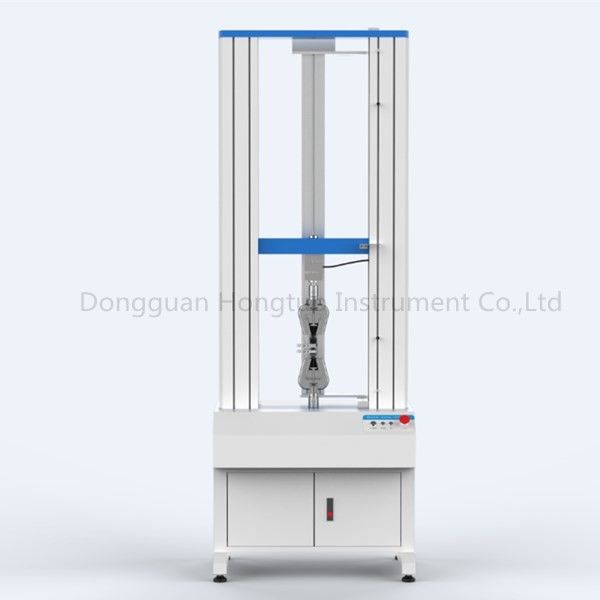

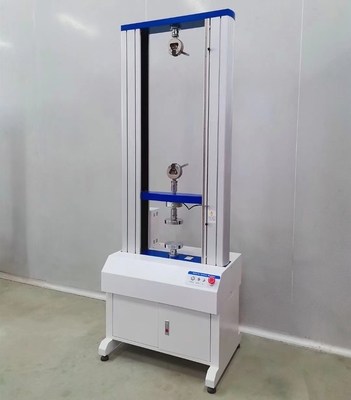

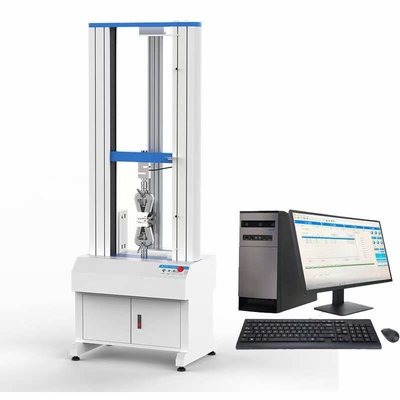

Double Column Computer Controlling Servo Universal Testing Machine
This series of computer-controlled testing machine is designed and manufactured by Hongtuo Instruments. It adopts the current international mainstream speed control technology, and the main parts are made of imported professional brand companies; this series has long-term high reliability and stability. With precision, smooth operation and long life. This series is mainly used for material testing with load below 50kN. The functional application covers the testing of most products. It is the perfect testing instrument for mechanical testing by factories, scientific research units and quality inspection organizations.
It has a wider and more accurate loading speed and force range, and has higher accuracy and sensitivity for measurement and control of load, deformation and displacement. It has stress-strain, force-displacement, power-time, intensity-time and other modes. Can find the maximum force value, tensile strength, flexural strength, compressive strength, elastic modulus, elongation at break, yield strength and other parameters, suitable for testing and analysis of tensile, compression, peeling, tearing, shearing, etc. The testing machine adopts high-speed DSP platform, which has high integration, powerful control, data processing capability and high reliability, which is unmatched by other processor test machines; all-digital adaptive PID algorithm,the closed-loop(force,deformation,displacement) control system,can realize full digital closed-loop control of force and displacement, and can automatically switch between control loops, and realizes smooth transition without impact when switching between modes.
Application industry:
Metal materials; aerospace; powder metallurgy; magnetic materials, ceramics manufacturing; rubber and plastics; metrological quality inspection; commodity inspection and arbitration; technical supervision departments; universities; research laboratories; basic materials laboratory; metallurgical steel; machinery manufacturing; Automobile production; textile and chemical fiber; wire and cable; packaging materials and food; instrumentation; medical equipment; petrochemical; civil nuclear energy; energy battery; basic materials;
Application Products:
|
>Medium strength metal
>Sintered products
>Friction material
>Rubber
>Plastic
>Film
>Fiber and thin lines
>Adhesive
|
>Foam material
>Tape
>Elastomer
>Connector
>Biomaterials
>Wood and paper products
>Metal foil
>Metallic line
|
>Oil bearing
>Ceramics
>Parts
>Fastener
>Composite materials
|
Standard:
ASTM, ISO, DIN, GB and other international standards.
Main Feature:
- This machine is suitable for a wide range of applications
- Powerful function, meet most of the mechanical properties test
- Easy to operate, easy for anyone to operate
- World-class AC servo motor and server for maintenance-free maintenance
- Precision preloaded ball screw
- Smooth operation, high reliability, sturdy and durable
- Accurate measurement,certified by a third-party testing agency
- High speed, low vibration, low noise servo motor drive
- Multilingual application function, adapt to different countries’using
- Test mode function such as tensile, flexural, compressive, flexural, adhesive, tear, peel, elongation, etc.
|
- Has a variety of curve modes such as stress-strain,force-displacement, force-time, intensity-time
- Automatic calculation of maximum force, minimum force, average force, maximum deformation, elongation, strength, etc.

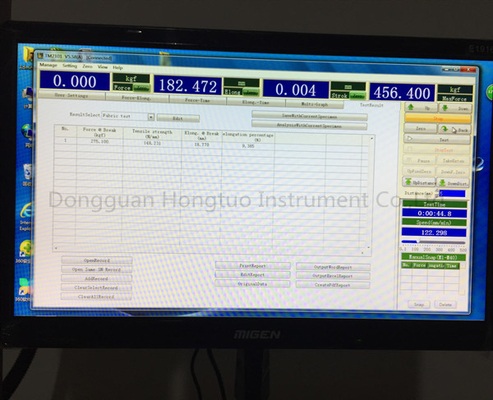

- Flexible capabilities of graph, datasheet, report viewing and printing.
- Automatic homing function that automatically returns to the test start after the test is completed
- With mechanical travel switch; emergency stop switch; over current, over voltage, under current, under voltage, leakage overload; software overload limit protection; breakpoint shutdown protection and other multiple protection devices
- Optional: small deformation metal
- extensometer, large deformation displacement tracke
|
Specification:
| Brand |
HongTuo |
| Model |
WDW-D |
| -002 |
-005 |
-01 |
-02 |
-05 |
-1 |
-2 |
-5 |
-10 |
-20 |
-30 |
-50 |
| Capacity |
KN |
0.02 |
0.05 |
0.1 |
0.2 |
0.5 |
1 |
2 |
5 |
10 |
20 |
30 |
50 |
| KG |
2 |
5 |
10 |
20 |
50 |
100 |
200 |
500 |
1000 |
2000 |
3000 |
5000 |
| lb |
|
|
|
|
|
|
|
|
|
|
|
|
| Unit switching |
G,Kg,lb,N,KN |
| Displacement unit switching |
Inch cm mm |
| Test machine level |
0.5 class |
| Effective force range |
0.2％～100％FS |
| Force accuracy |
Within ±0.5% |
| Force decomposition |
1/300 000 |
| Force Power magnification |
Full automatic shift switching |
| Displacement resolution |
0.00005mm |
| Displacement accuracy |
Within ±0.5% |
| Deformation measurement range |
0.2%～100%FS |
| Deformation indication accuracy |
Within ±0.5% |
| Large deformation measurement range |
(10～1000)mm |
| Large deformation resolution |
0.0025mm |
| Large deformation indication error limit |
Within ±5% |
| Maximum test speed |
500mm/min；optional maximum 1000mm/min |
| Minimum test speed |
0.001mm/min |
| Speed accuracy |
Within ±0.5% |
|
Beam travel
Measuring height
|
standard |
No grip testing stroke:330mm；With grip testing stroke:800mm |
| optional |
/ |
| / |
| Effective width |
standard |
420mm |
| optional |
650mm |
| Fixture configuration |
One set of tensile grip；can choose other grips |
| Returning method |
Manual or automatic selection, automatically return after the test ends or manually return to the initial position |
| Stop method |
1.Maximum break value automatically stop 2.Upper and lower limit safety setting stop |
