5KN Computer Servo Controlled Pet Bottle Topload Universal Top Load Test Machine

5KN Computer Servo Controlled Pet Bottle Topload Universal Top Load Test Machine

    • 5KN Computer Servo Controlled Pet Bottle Topload Universal Top Load Test Machine
    • 5KN Computer Servo Controlled Pet Bottle Topload Universal Top Load Test Machine
    • 5KN Computer Servo Controlled Pet Bottle Topload Universal Top Load Test Machine
    • 5KN Computer Servo Controlled Pet Bottle Topload Universal Top Load Test Machine
    • 5KN Computer Servo Controlled Pet Bottle Topload Universal Top Load Test Machine
    • 5KN Computer Servo Controlled Pet Bottle Topload Universal Top Load Test Machine
    • 5KN Computer Servo Controlled Pet Bottle Topload Universal Top Load Test Machine
  • 5KN Computer Servo Controlled Pet Bottle Topload Universal Top Load Test Machine

    Product Details:

    Place of Origin: Dongguan, Guangdong
    Brand Name: DahoMeter
    Certification: CE,FCC,ISO
    Model Number: WDW-5

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: USD2926
    Packaging Details: wood standard exported package for 5KN Computer Servo Controlled Pet Bottle Topload Universal Top Load Test Machine
    Delivery Time: In stock
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Test Machine Level: 0.5class Effective Force Range: 0.4%~100%FS
    Force Accuracy: Within ±0.5% Force Decomposition: 1/200 000
    Force Power Magnification: X1,X2,X5,X10,X20,X50,X100.,etc.Seven-speed Automatic Shifting Displacement Resolution: 0.005mm

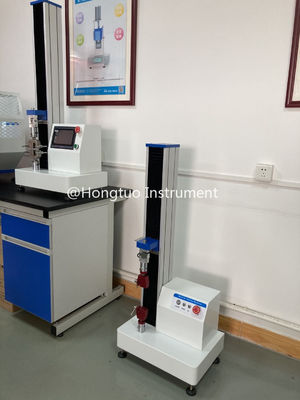

    Single Column Computer Controlling Servo Universal Testing Machine





    This machine is a new material testing machine combining electronic technology with software technology and mechanical transmission. It adopts imported AC servo electric and AC servo speed control system as precision power source. It adopts imported precision ball drive screw and guide rod, adopting imported grade 0.5. The precision force value sensor is then accurately measured by a high-precision force value measurement system. This series of models adopts single space structure, which is mainly used for material testing with load less than 10kN. It has firm structure, convenient operation and simple maintenance. It is an ideal test instrument for mechanical testing in various factories and enterprises. It has a wide and accurate loading speed and force range. It has high precision and sensitivity for measurement and control of load, deformation and displacement. It has stress, strain and displacement modes, and can find the maximum force value, tensile strength and bending strength, compression strength, modulus of elasticity, elongation at break, yield strength and other parameters, suitable for tensile, compression, peeling, tearing, shearing, etc. mechanical properties test and analysis.



    Application industry:



    Rubber and plastics; metrological quality inspection; commodity inspection and arbitration; technical supervision department; colleges and universities; scientific research laboratory; basic materials laboratory; metallurgical steel; machinery manufacturing; electronic appliances; automobile production; textile chemical fiber; wire and cable; packaging materials and food; Instrumentation; medical equipment; petrochemical; civil nuclear energy; aerospace; ceramic materials; magnetic materials industry; energy batteries; basic materials;



    Standard:



    ASTM, ISO, DIN, GB and other international standards.



    Application products:



    >Plastic

    >Film

    >Fiber and thin wire

    >Adhesive

    >Foam material
    >Tape

    >Elastomer

    >Connector

    >Biomaterials

    >Wood and paper products

    >Metal foil

    >Metallic line



    >Below medium strength metal

    >Oil bearing
    >Ceramic

    >Part

    >Fastener

    >Composite material



    Main Feature:



    1. Meet most of the mechanical properties test
    2. Completely compact structure, high rigidity design, durable
    3. Easy to operate, anyone can operate
    4. High accuracy, certified by a third-party testing agency
    5. High speed, low vibration, low noise motor drive
    6. Multilingual application function, adapt to different countries’ using
    7. Capabilities with graph, data sheet, report viewing and printing
    8. Automatic returning function after test completed
    1. Automatic calculation of maximum force, minimum force, average force, maximum deformation, elongation, strength, etc.
    2. Has a variety of curve modes such as stress-strain, force-displacement, force-time, intensity-time
    3. Has test mode functions such as tensile, flexural, compressive, flexural, adhesive, tear, peel, elongation, etc.
    4. With mechanical travel switch; emergency stop switch; over current, over voltage, under current, under voltage, leakage overload protection; software overload limit protection; breakpoint shutdown protection and other multiple protection devices
    5. Optional: small deformation metal extensometer, large deformation displacement tracker



    Technical Instruction:

    Brand HongTuo
    Model WDW-
    -005 -01 -02 -05 -1 -2 -5 -10
    Capacity KN 0.05kN 0.1 kN 0.2 kN 0.5kN 1 kN 2kN 5kN 10KN
    KG 5kg 10kg 20kg 50kg 100kg 200kg 500kg 1000kg
    lb
    Structure Double rail structure Three double rail structure
    Unit switching G,Kg,lb,N,KN
    Displacement unit switching Inch cm mm
    Test machine level 0.5class
    Effective force range 0.4%~100%FS
    Force accuracy Within ±0.5%
    Force decomposition 1/200 000
    Force Power magnification X1,X2,X5,X10,X20,X50,X100.,etc.Seven-speed automatic shifting
    Displacement resolution 0.005mm
    Displacement accuracy Within ±0.5%
    Deformation measurement range 2%~100%FS
    Deformation indication accuracy Within ±0.5%
    Large deformation measurement range (0~800)mm
    Large deformation resolution 0.005mm
    Large deformation indication error limit Within ±5%
    Maximum test speed 500mm/min;optional maximum 1000mm/min
    Minimum test speed 0.001mm/min
    Speed accuracy Within ±0.5%

    Beam travel

    Measuring height

    standard No grip testing stroke:920mm
    optional No grip testing stroke:1320mm
    Fixture configuration One set of tensile grip;can choose other grips
    Returning method Manual or automatic selection, automatically return after the test ends or manually return to the initial position
    Stop method 1.Maximum break value automatically stop 2.Upper and lower limit safety setting stop
    Safety devices 1.Mechanical limit switch protection 2.Emergency stop switch emergency brake
    Overload protection Over 10% of maximum load, automatic machine protection
    Accessories 1 power cord; 1 test software program CD; 1 data cable; 1 manual; 1 certificate
    Optional accessories Three double rail structure; anti-splash device (protective door); computer; printer; small deformation metal extensometer, large deformation displacement tracker
    Powder supply 220V.AC/ 50HZ; 110V.AC/60HZ
    Main host size/ weight Length*Width*Height:450mm*400mm*1160mm / Around 50KG
    Packing size / weight Length*Width*Height:550mm*500mm*1400mm / Around 73KG



    5KN Computer Servo Controlled Pet Bottle Topload Universal Top Load Test Machine5KN Computer Servo Controlled Pet Bottle Topload Universal Top Load Test Machine5KN Computer Servo Controlled Pet Bottle Topload Universal Top Load Test Machine
