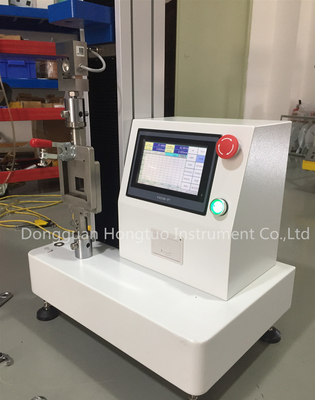

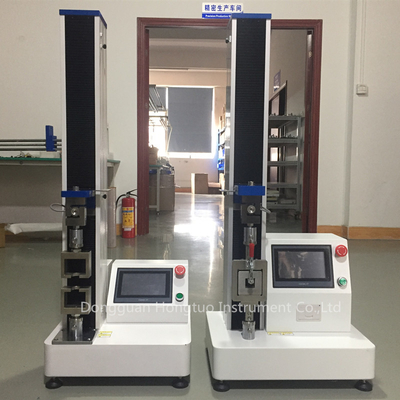

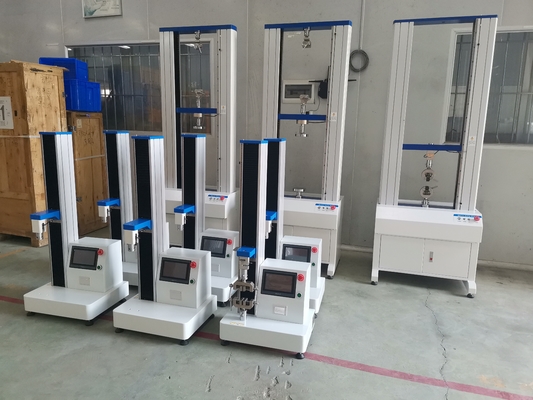

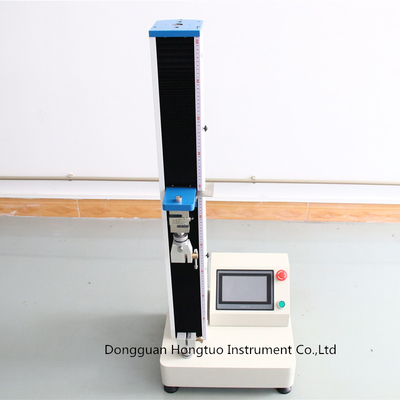

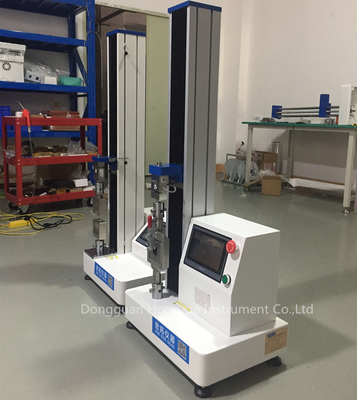

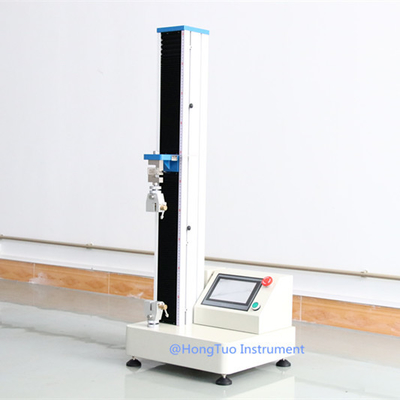

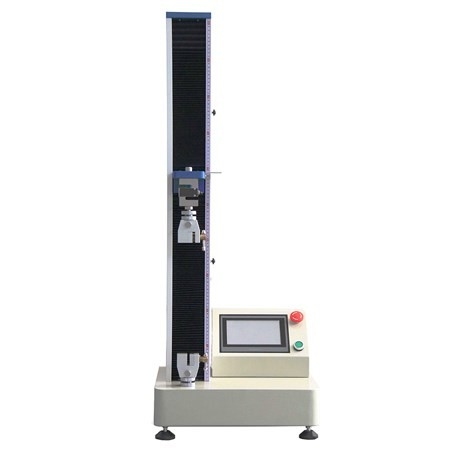

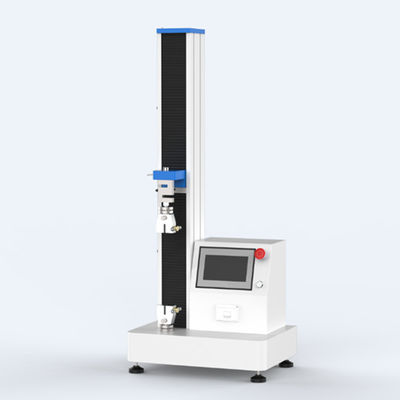

5Kn Single Column Computer Controlling Servo Universal Testing Machine

Product Details:

Place of Origin:	Dongguan China
Brand Name:	DahoMeter
Certification:	ISO,SGS
Model Number:	WDW-5S

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	negotiable
Packaging Details:	standard exporting wooden package
Delivery Time:	In stock
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	300 sets per month

Contact Now

Detailed Product Description

Max Load:	5Kn	Structure:	Single Column Double Spaces
Control Method:	Single Chip Control	Load Accuracy:	1 Class
Load Range:	2%-100%FS 0.4%-100% FS	Displacement Resolution:	0.01mm
Test Speed:	0.05-500mm/min;can Be Customized	Tensile Space:	600mm (can Be Customized)
Compression Space:	600mm (can Be Customized)

5KN Touch Screen Type Peeling Strength Testing Machine

Tensile testing machines are universal testing machines specially configured to evaluate tensile strength of specimens. Our tensile testers will measure characteristics such as ultimate tensile strength, yield strength, elongation and modulus. Each tensile test machine is configured to your testing needs by our application engineers with the correct controller, grips, and accessories. Due to our modular machine design, your tensile tester can also be equipped to perform other applications such as compression, cyclic, shear, flexure, bend, peel, and tear just by adding fixtures.

Application Industries

Universal tensile strength testing machine is widely used in most of industries: Rubber & Plastics; Metallurgical iron and steels; Manufacturing machinery; Electronic equipments; Automobile production; Textile fibers; Wire and cables; Packaging materials and footstuffs; Instrumentation; Medical equipments; Civilian nuclear energy; Civil aviation; Colleges and universities; Research laboratory; Inspection arbitration, technical supervision departments; Building materials and so on.

Main Technical Parameters:

Brand			HongTuo
Model			WDW-S
			-005	-01	-02	-05	-1	-2	-5	-10
Capacity	KN		0.05kN	0.1 kN	0.2 kN	0.5kN	1 kN	2kN	5kN	10KN
	KG		5kg	10kg	20kg	50kg	100kg	200kg	500kg	1000kg
	lb
Structure			Double rail structure						Three double rail structure
Unit switching			G,Kg,lb,N,KN
Displacement unit switching			Inch cm mm
Test machine level			1class
Effective force range			0.4％～100％FS
Force accuracy			Within ±0.5%
Force decomposition			1/200 000
Force Power magnification			X1,X2,X5,X10,X20,X50,X100.,etc.Seven-speed automatic shifting
Displacement resolution			0.05mm
Displacement accuracy			Within ±1%
Deformation measurement range			2%～100%FS
Deformation indication accuracy			Within ±1%
Large deformation measurement range			(0～800)mm
Large deformation resolution			0.05mm
Large deformation indication error limit			Within ±1%
Maximum test speed			500mm/min；optional maximum 1000mm/min
Minimum test speed			0.1mm/min
Speed accuracy			Within ±1%
Beam travel Measuring height		standard	No grip testing stroke:920mm
		optional	No grip testing stroke:1320mm
Fixture configuration			One set of tensile grip；can choose other grips
Returning method			Manual or automatic selection, automatically return after the test ends or manually return to the initial position
Stop method			1.Maximum break value automatically stop 2.Upper and lower limit safety setting stop
Safety devices			1.Mechanical limit switch protection 2.Emergency stop switch emergency brake
Overload protection			Over 10% of maximum load, automatic machine protection
Accessories			1 power cord; 1 manual; 1 certificate
Optional accessories			Anti-splash device (protective door); printer;software
Powder supply			220V.AC/ 50HZ; 110V.AC/60HZ
Main host size/ weight			Standard model:LengthWidthHeight:450mm400mm1160mm / Around 50KG Heightening model:LengthWidthHeight:450mm400mm1550mm / Around 55KG
Packing size / weight			Standard model:LengthWidthHeight:550mm500mm1400mm / Around 73KG Heightening model:LengthWidthHeight:550mm500mm1800mm / Around 78KG

5Kn Single Column Computer Controlling Servo Universal Testing Machine
