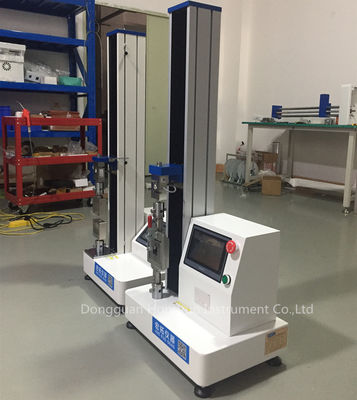

WDW-5S Professional Supplier Foam Compressive Strength Test Equipment Excellent Quality

WDW-5S Professional Supplier Foam Compressive Strength Test Equipment Excellent Quality

    • WDW-5S Professional Supplier Foam Compressive Strength Test Equipment Excellent Quality
    • WDW-5S Professional Supplier Foam Compressive Strength Test Equipment Excellent Quality
    • WDW-5S Professional Supplier Foam Compressive Strength Test Equipment Excellent Quality
    • WDW-5S Professional Supplier Foam Compressive Strength Test Equipment Excellent Quality
    • WDW-5S Professional Supplier Foam Compressive Strength Test Equipment Excellent Quality
    • WDW-5S Professional Supplier Foam Compressive Strength Test Equipment Excellent Quality
    • WDW-5S Professional Supplier Foam Compressive Strength Test Equipment Excellent Quality
    • WDW-5S Professional Supplier Foam Compressive Strength Test Equipment Excellent Quality
    • WDW-5S Professional Supplier Foam Compressive Strength Test Equipment Excellent Quality

    Product Details:

    Place of Origin: Dongguan China
    Brand Name: DahoMeter
    Certification: ISO,SGS
    Model Number: WDW-5S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: negotiable
    Packaging Details: standard exporting wooden package
    Delivery Time: 5-8 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Max Load: 5Kn Structure: Single Column Double Spaces
    Control Method: Single Chip Control Load Accuracy: 1 Class
    Load Range: 2%-100%FS 0.4%-100% FS Displacement Resolution: 0.01mm
    Test Speed: 0.05-500mm/min;can Be Customized Tensile Space: 600mm (can Be Customized)
    Compression Space: 600mm (can Be Customized)


    WDW-05S Professional Supplier Foam Compressive Strength Test Equipment Excellent Quality



    1.Application:

    It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.

    2.Standard:

    ASTM, ISO, DIN, GB and other international standards.


    3.Features



    • Meet most of the mechanical properties test
    • Completely compact structure, high rigidity design, durable
    • Easy to operate, anyone can operate
    • High accuracy, certified by a third-party testing agency
    • High speed, low vibration, low noise motor drive
    • Multilingual application function, adapt to different countries’ using
    • Capabilities with graph, data sheet, report viewing and printing
    • Automatic returning function after test completed
    • Automatic calculation of maximum force, minimum force, average force, maximum deformation, elongation, strength, etc.
    • Has a variety of curve modes such as stress-strain, force-displacement, force-time, intensity-time
    • Has test mode functions such as tensile, flexural, compressive, flexural, adhesive, tear, peel, elongation, etc.
    • With mechanical travel switch; emergency stop switch; over current, over voltage, under current, under voltage, leakage overload protection; software overload limit protection; breakpoint shutdown protection and other multiple protection devices
    • Optional: small deformation metal extensometer, large deformation displacement tracker


    4.Main Technical Parameters:

    BrandHongTuo
    ModelWDW-S
    -005-01-02-05-1-2-5-10
    CapacityKN0.05kN0.1 kN0.2 kN0.5kN1 kN2kN5kN10KN
    KG5kg10kg20kg50kg100kg200kg500kg1000kg
    lb
    StructureDouble rail structureThree double rail structure
    Unit switchingG,Kg,lb,N,KN
    Displacement unit switchingInch cm mm
    Test machine level1class
    Effective force range0.4％～100％FS
    Force accuracyWithin ±0.5%
    Force decomposition1/200 000
    Force Power magnificationX1,X2,X5,X10,X20,X50,X100.,etc.Seven-speed automatic shifting
    Displacement resolution0.05mm
    Displacement accuracyWithin ±1%
    Deformation measurement range2%～100%FS
    Deformation indication accuracyWithin ±1%
    Large deformation measurement range(0～800)mm
    Large deformation resolution0.05mm
    Large deformation indication error limitWithin ±1%
    Maximum test speed500mm/min；optional maximum 1000mm/min
    Minimum test speed0.1mm/min
    Speed accuracyWithin ±1%

    Beam travel

    Measuring height

    		standardNo grip testing stroke:920mm
    optionalNo grip testing stroke:1320mm
    Fixture configurationOne set of tensile grip；can choose other grips
    Returning methodManual or automatic selection, automatically return after the test ends or manually return to the initial position
    Stop method1.Maximum break value automatically stop 2.Upper and lower limit safety setting stop
    Safety devices1.Mechanical limit switch protection 2.Emergency stop switch emergency brake
    Overload protectionOver 10% of maximum load, automatic machine protection
    Accessories1 power cord; 1 manual; 1 certificate
    Optional accessoriesAnti-splash device (protective door); printer;software
    Powder supply220V.AC/ 50HZ; 110V.AC/60HZ
    Main host size/ weight

    Standard model:Length*Width*Height:450mm*400mm*1160mm / Around 50KG

    Heightening model:Length*Width*Height:450mm*400mm*1550mm / Around 55KG

    Packing size / weight

    Standard model:Length*Width*Height:550mm*500mm*1400mm / Around 73KG

    Heightening model:Length*Width*Height:550mm*500mm*1800mm / Around 78KG



    WDW-5S Professional Supplier Foam Compressive Strength Test Equipment Excellent QualityWDW-5S Professional Supplier Foam Compressive Strength Test Equipment Excellent Quality
    WDW-5S Professional Supplier Foam Compressive Strength Test Equipment Excellent Quality
