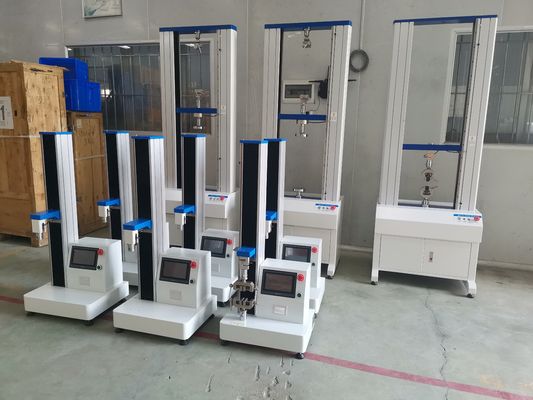

Single Column Touch Screen Universal Testing Machine For Silicone Sponge Tensile

Single Column Touch Screen Universal Testing Machine For Silicone Sponge Tensile

    • Single Column Touch Screen Universal Testing Machine For Silicone Sponge Tensile
    • Single Column Touch Screen Universal Testing Machine For Silicone Sponge Tensile
    • Single Column Touch Screen Universal Testing Machine For Silicone Sponge Tensile
    • Single Column Touch Screen Universal Testing Machine For Silicone Sponge Tensile
    • Single Column Touch Screen Universal Testing Machine For Silicone Sponge Tensile
    • Single Column Touch Screen Universal Testing Machine For Silicone Sponge Tensile
    • Single Column Touch Screen Universal Testing Machine For Silicone Sponge Tensile
  • Single Column Touch Screen Universal Testing Machine For Silicone Sponge Tensile

    Product Details:

    Place of Origin: Dongguan China
    Brand Name: DahoMeter
    Certification: ISO,SGS
    Model Number: WDW-5S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: negotiable
    Packaging Details: standard exporting wooden package
    Delivery Time: In stock
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Max Load: 5Kn Structure: Single Column Double Spaces
    Control Method: Single Chip Control Load Accuracy: 1 Class
    Load Range: 2%-100%FS 0.4%-100% FS Displacement Resolution: 0.01mm
    Test Speed: 0.05-500mm/min;can Be Customized Tensile Space: 600mm (can Be Customized)
    Compression Space: 600mm (can Be Customized)



    Silicone Sponge Tensile and Compression Measuring Machine




    1.Application:

    It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.

    2.Standard:

    ASTM, ISO, DIN, GB and other international standards.

    3.Main Technical Parameters:

    Brand HongTuo
    Model WDW-S
    -005 -01 -02 -05 -1 -2 -5 -10
    Capacity KN 0.05kN 0.1 kN 0.2 kN 0.5kN 1 kN 2kN 5kN 10KN
    KG 5kg 10kg 20kg 50kg 100kg 200kg 500kg 1000kg
    lb
    Structure Double rail structure Three double rail structure
    Unit switching G,Kg,lb,N,KN
    Displacement unit switching Inch cm mm
    Test machine level 1class
    Effective force range 0.4%~100%FS
    Force accuracy Within ±0.5%
    Force decomposition 1/200 000
    Force Power magnification X1,X2,X5,X10,X20,X50,X100.,etc.Seven-speed automatic shifting
    Displacement resolution 0.05mm
    Displacement accuracy Within ±1%
    Deformation measurement range 2%~100%FS
    Deformation indication accuracy Within ±1%
    Large deformation measurement range (0~800)mm
    Large deformation resolution 0.05mm
    Large deformation indication error limit Within ±1%
    Maximum test speed 500mm/min;optional maximum 1000mm/min
    Minimum test speed 0.1mm/min
    Speed accuracy Within ±1%

    Beam travel

    Measuring height

    standard No grip testing stroke:920mm
    optional No grip testing stroke:1320mm
    Fixture configuration One set of tensile grip;can choose other grips
    Returning method Manual or automatic selection, automatically return after the test ends or manually return to the initial position
    Stop method 1.Maximum break value automatically stop 2.Upper and lower limit safety setting stop
    Safety devices 1.Mechanical limit switch protection 2.Emergency stop switch emergency brake
    Overload protection Over 10% of maximum load, automatic machine protection
    Accessories 1 power cord; 1 manual; 1 certificate
    Optional accessories Anti-splash device (protective door); printer;software
    Powder supply 220V.AC/ 50HZ; 110V.AC/60HZ
    Main host size/ weight

    Standard model:Length*Width*Height:450mm*400mm*1160mm / Around 50KG

    Heightening model:Length*Width*Height:450mm*400mm*1550mm / Around 55KG

    Packing size / weight

    Standard model:Length*Width*Height:550mm*500mm*1400mm / Around 73KG

    Heightening model:Length*Width*Height:550mm*500mm*1800mm / Around 78KG





    Single Column Touch Screen Universal Testing Machine For Silicone Sponge TensileSingle Column Touch Screen Universal Testing Machine For Silicone Sponge Tensile
