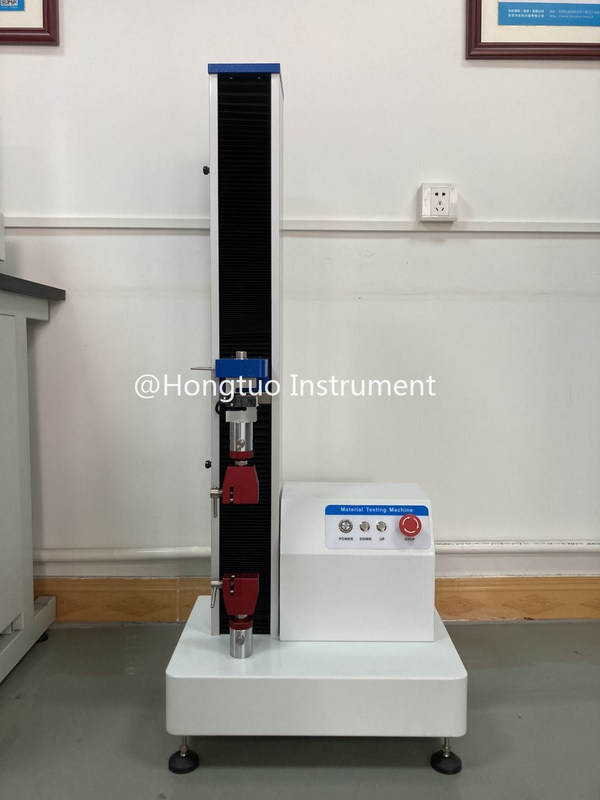

Wire Tensile Strength Tester, Wire Tensile Strength Testing Machine Excellent Quality

Wire Tensile Strength Tester, Wire Tensile Strength Testing Machine Excellent Quality

    • Wire Tensile Strength Tester, Wire Tensile Strength Testing Machine Excellent Quality
    • Wire Tensile Strength Tester, Wire Tensile Strength Testing Machine Excellent Quality
    • Wire Tensile Strength Tester, Wire Tensile Strength Testing Machine Excellent Quality
    • Wire Tensile Strength Tester, Wire Tensile Strength Testing Machine Excellent Quality
    • Wire Tensile Strength Tester, Wire Tensile Strength Testing Machine Excellent Quality
    • Wire Tensile Strength Tester, Wire Tensile Strength Testing Machine Excellent Quality

    Product Details:

    Place of Origin: Dongguan China
    Brand Name: DahoMeter
    Certification: ISO,SGS
    Model Number: WDW-5

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: negotiable
    Packaging Details: standard exporting wooden package
    Delivery Time: In stock
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Power: Electronic Usage: Universal Testing Machine
    Test Material: Rubber, Plastic, Fiber, Film,polymer, Woven, Etc Structure: Single Column
    Function: Tensile Compression Bending Test Standard: BS.EN.ASTM



    Wire Tensile Strength Tester, Wire Tensile Strength Testing Machine Excellent Quality



    1. Application:


    WDW series computerized electronic universal testing machines are designed and manufactured according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubbe,plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.



    2. Main Specifications:



    Brand HongTuo
    Model WDW-S
    -005 -01 -02 -05 -1 -2 -5 -10
    Capacity KN 0.05kN 0.1 kN 0.2 kN 0.5kN 1 kN 2kN 5kN 10KN
    KG 5kg 10kg 20kg 50kg 100kg 200kg 500kg 1000kg
    lb
    Structure Double rail structure Three double rail structure
    Unit switching G,Kg,lb,N,KN
    Displacement unit switching Inch cm mm
    Test machine level 1class
    Effective force range 0.4％～100％FS
    Force accuracy Within ±0.5%
    Force decomposition 1/200 000
    Force Power magnification X1,X2,X5,X10,X20,X50,X100.,etc.Seven-speed automatic shifting
    Displacement resolution 0.05mm
    Displacement accuracy Within ±1%
    Deformation measurement range 2%～100%FS
    Deformation indication accuracy Within ±1%
    Large deformation measurement range (0～800)mm
    Large deformation resolution 0.05mm
    Large deformation indication error limit Within ±1%
    Maximum test speed 500mm/min；optional maximum 1000mm/min
    Minimum test speed 0.1mm/min
    Speed accuracy Within ±1%

    Beam travel

    Measuring height

    		 standard No grip testing stroke:920mm
    optional No grip testing stroke:1320mm
    Fixture configuration One set of tensile grip；can choose other grips
    Returning method Manual or automatic selection, automatically return after the test ends or manually return to the initial position
    Stop method 1.Maximum break value automatically stop 2.Upper and lower limit safety setting stop
    Safety devices 1.Mechanical limit switch protection 2.Emergency stop switch emergency brake
    Overload protection Over 10% of maximum load, automatic machine protection
    Accessories 1 power cord; 1 manual; 1 certificate
    Optional accessories Anti-splash device (protective door); printer;software
    Powder supply 220V.AC/ 50HZ; 110V.AC/60HZ
    Main host size/ weight

    Standard model:Length*Width*Height:450mm*400mm*1160mm / Around 50KG

    Heightening model:Length*Width*Height:450mm*400mm*1550mm / Around 55KG
    Packing size / weight

    Standard model:Length*Width*Height:550mm*500mm*1400mm / Around 73KG

    Heightening model:Length*Width*Height:550mm*500mm*1800mm / Around 78KG




    3. Feature:



    • Meet most of the mechanical properties test
    • Completely compact structure, high rigidity design, durable
    • Easy to operate, anyone can operate
    • High accuracy, certified by a third-party testing agency
    • High speed, low vibration, low noise motor drive
    • Multilingual application function, adapt to different countries’ using
    • Capabilities with graph, data sheet, report viewing and printing
    • Automatic returning function after test completed
    • Automatic calculation of maximum force, minimum force, average force, maximum deformation, elongation, strength, etc.
    • Has a variety of curve modes such as stress-strain, force-displacement, force-time, intensity-time
    • Has test mode functions such as tensile, flexural, compressive, flexural, adhesive, tear, peel, elongation, etc.
    • With mechanical travel switch; emergency stop switch; over current, over voltage, under current, under voltage, leakage overload protection; software overload limit protection; breakpoint shutdown protection and other multiple protection devices
    • Optional: small deformation metal extensometer, large deformation displacement tracker





    Wire Tensile Strength Tester, Wire Tensile Strength Testing Machine Excellent QualityWire Tensile Strength Tester, Wire Tensile Strength Testing Machine Excellent QualityWire Tensile Strength Tester, Wire Tensile Strength Testing Machine Excellent Quality
